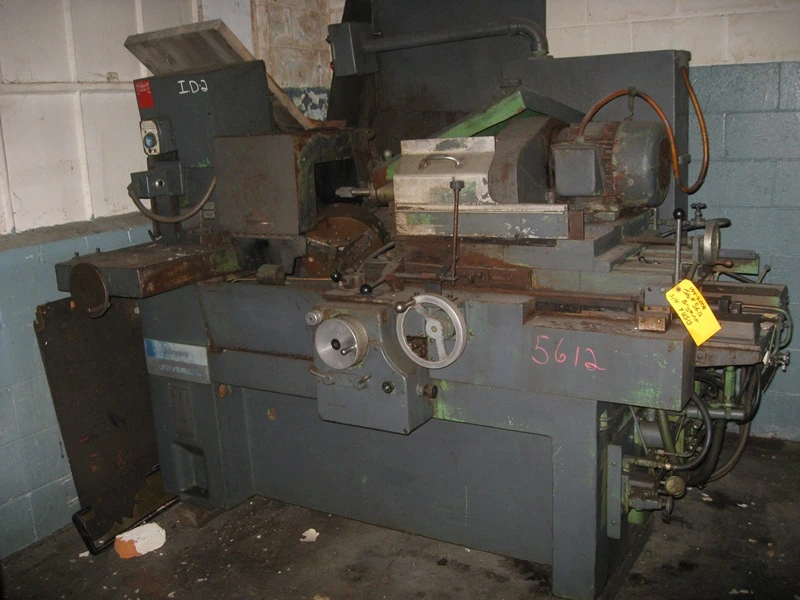

BRYANT UNIVERSAL INTERNAL GRINDER

BRYANT UNIVERSAL INTERNAL GRINDER

S/N Y-16515 Year:1981

STANDARD CATALOG SPECIFICATIONS
Swing standard chuck guard, max.................... 16
Swing without chuck guard, max..................... 23
Swing work head swiveled 90 degrees max............ 12
Angular adjustment of work head.................... 90�
Wheel slide cross feed travel...................... 1.5
Work head cross slide travel....................... 15.5
Table travel, max.................................. 20
Grinding stroke.................................... .125 to 16
Work spindle, R.P.M................................ 50 - 650
(Optional).........................................25 - 325
Work head spindle flange 6Type D1 ASA
Standard cam lock spindle nose
Floor space with -
Coolant tank....................................... 111 x 82.25
Approximate net weight, lbs........................ 6800

EQUIPMENT FEATURES
Bryant cartridge spindle.
Variable speed hydraulic work head.
Separate hydraulic unit 7.5 H.P.
Single point diamond dresser manual.
12 3 Jaw chuck.
Cross sliding work head.
440 V. 3PH. 60 Cycle.

Specifications are deemed accurate, however, subject to verification or prior sale.
