BRYANT UL2 W-17907

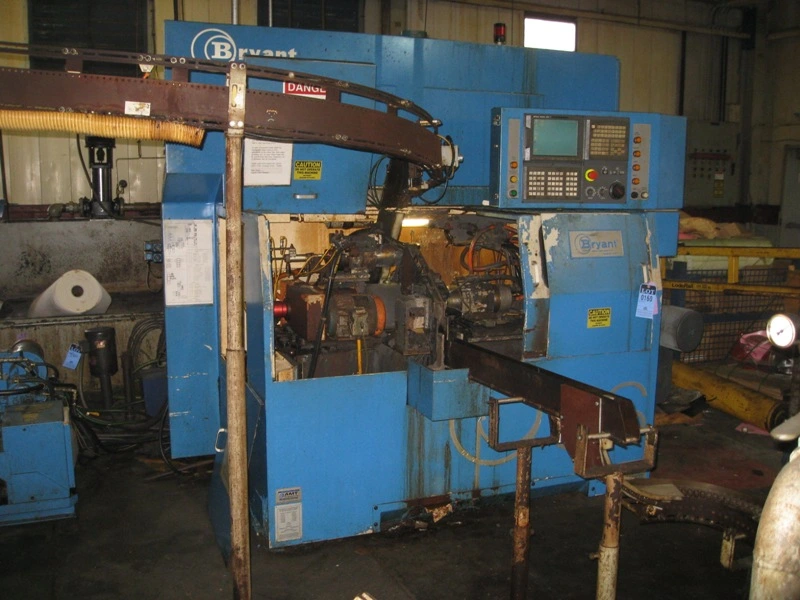

BRYANT ULTRALINE UL2 CNC 2 AXIS INTERNAL GRINDER
WITH LINEAR MOTION SLIDES

S/N W-17907 Year: 2004

STANDARD SPECIFICATIONS
Minimum bore…………………………………..……………… 0.40”
Maximum swing……………………………………………..…. 6”
Maximum bore (chucker)…...………………………….……… 4”
Maximum length of bore……………………………….……… 3”
Maximum “Z” axis travel………………………………….….. 10”
Maximum “X” axis travel……………………………………... 2”
Maximum “Z” axis feed rate………………………………….. 1.800 IPM
Maximum “X” axis feed rate……………………………….…. 520 IPM
“Z” Axis resolution…………………………………….……… 0.000016”
“X” Axis resolution…………………………………………… 0.000004”
Work speed - Chucker programmable to….…………...……… 4,000 RPM
Work head angular adjustment……………………………….. 1� CCW to 25� CW
Work drive motors - Chucker - front load…………………….. 1.5 HP
Maximum spindle speed……………………………………… 120,000 RPM
Approximate net weight…………………………………….… 10,500 lbs.
EQUIPPED WITH
ROUND HYDROSTATICWAYS WITH LINEAR MOTORS.
Hi-Frequency rotary diamond dresser.
Shoe type grinder.
Fanuc 160iT CNC controls.
High frequency spindle.
Attached electrical panel.
Load unload arms.

Specifications are deemed accurate, however, subject to verification or prior sale.
