Used 1997 BRYANT LL2 | GRINDERS, INTERNAL

                                                                                                                                                   Ref: UED6606-70

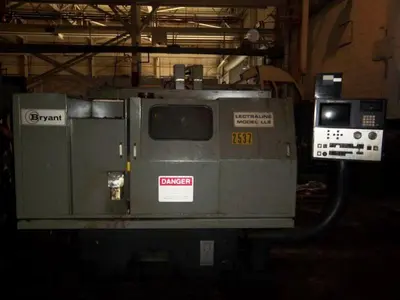

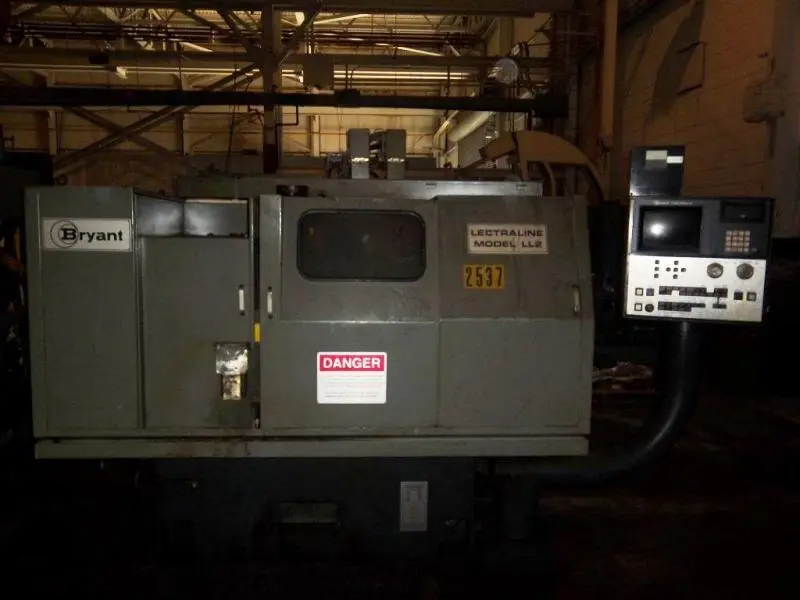

                                            BRYANT LL2 LECTRALINE GRINDING MACHINE

                                                           S/N W-17511   Year: 1997

STANDARD CATALOG SPECIFICATIONS
Maximum swing, straight bore...................... 6"
Maximum swing, tapered bore....................... 6"
Maximum included angle taper, w/manual
work head (degrees)............................... 60
Maximum included angle taper, w/power pivot
work head (degrees)............................... 100
Maximum length of bore............................ 2"
Maximum outside diameter, shoe centerless......... 4.5"
Maximum diameter of bore.......................... .040"
Longitudinal table travel and feed................ 8"
Cross slide table travel and feed................. 4"

SPEEDS & FEEDS
Work head (RPM)................................... 180   3600
Wheel speed, high frequency (RPM)................. 40,000
Feed rates, longitudinal and cross slides......... 0   600 IPM
Feed resolution, cross slide (standard)............ .000010"
Feed resolution, longitudinal slide (standard)..... .000100"

MOTORS
Work drive motor, variable speed DC............... 1.5 HP
Wheel drive motor, variable speed AC.............. 7.5 or 10 HP

MACHINE DIMENSIONS
Coolant tank capacity............................. 110 gal.
Floor space required (with doors open)............ 117" x 180"
Approximate net weight............................ 9,500 lbs.

ADDITIONAL FEATURES
Shoe type.
Teachable III Controls.
Radius dresser.
Volkman 900 VFD.
High frequency wheel head........................ 8-40,000

Specifications are deemed accurate, however, subject to verification or prior sale.
