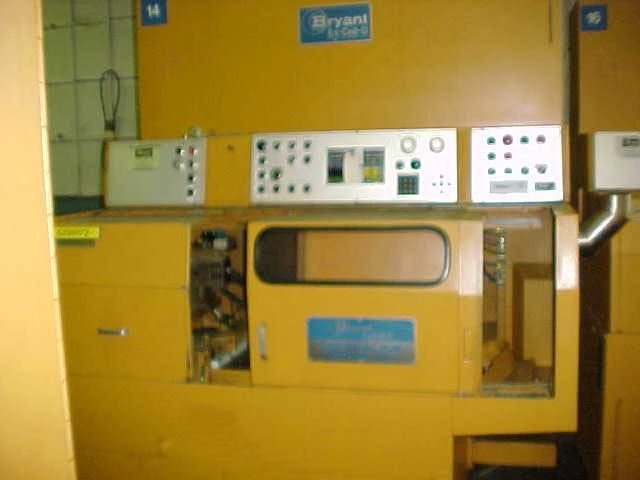

Used 1985 BRYANT EX-CELL-O LL-1 | GRINDERS, INTERNAL

             BRYANT EXCELLO LECTRALINE LL-1
                   S/N W-16901   Year: 1985
STANDARD SPECIFICATIONS
Maximum swing diameter........................ 6"
Maximum swing diameter over table............. 6"
Maximum O.D. hand load........................ same as swing
Maximum O.D. auto load........................ 1.5"
Maximum length of bore........................ 1.5"
Minimum bore diameter......................... 0.04"
Maximum included angle taper manual........... 60"
Maximum X-Axis stroke......................... 3.5"
Maximum Z-Axis stroke......................... 6"
X-Axis resolution standard.................... 0.000010"
Z-Axis resolution standard.................... 0.000010"
X-Axis and Z-Axis laser option................ 0.000001"
Variable feed rates X-Axis.................... 0 to 300 IPM
Variable feed rates Z-Axis.................... 0 to 600 IPM
Maximum work head speed....................... 7000 RPM
Chucker....................................... 1 HP
Maximum spindle speed high frequency.......... 120,000 RPM
Approximate net weight........................ 6500 lb.
Specifications are deemed accurate, however, subject to verification or prior sale.
NOTE:  The above machine has very low hours.  The mechanical portion is like new.
