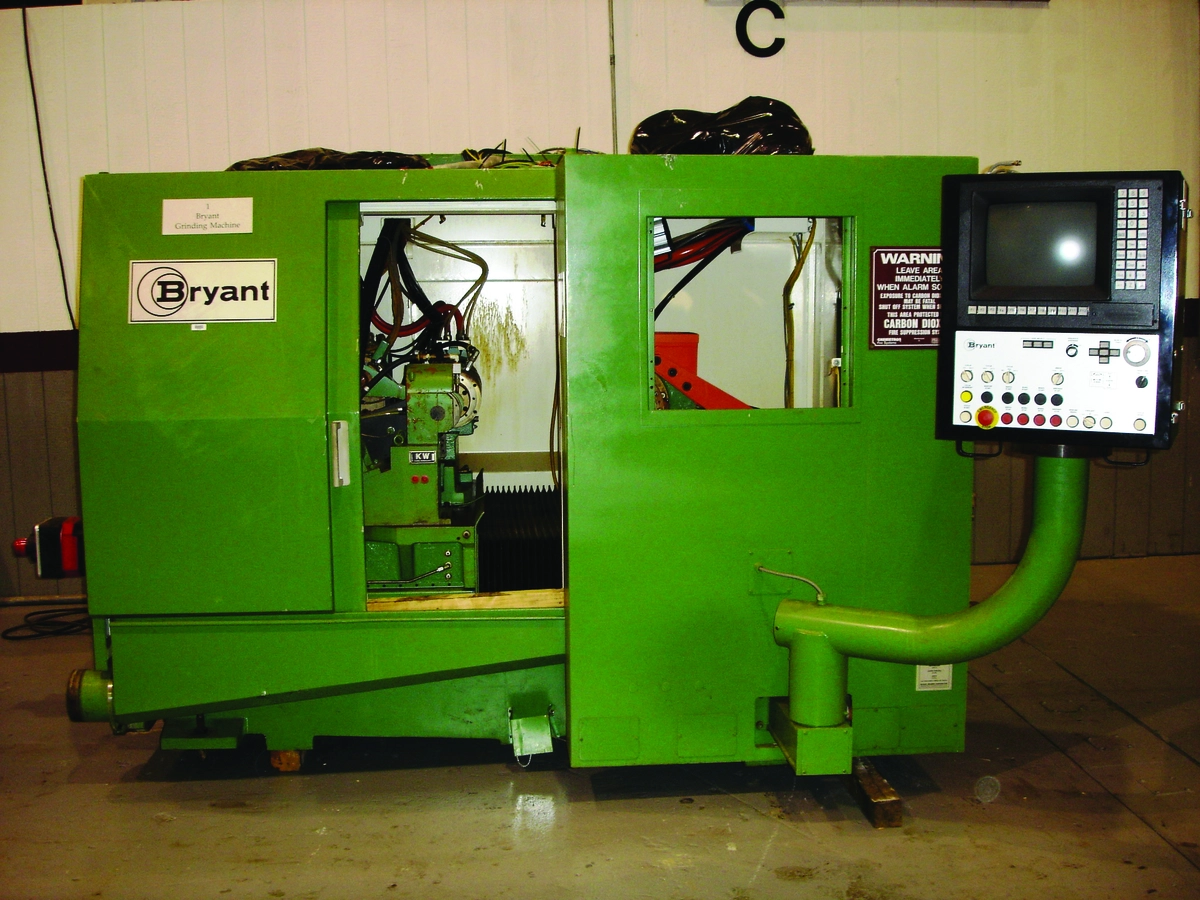

LF2 BRYANT LECTRAFORM CNC EXTERNAL FORM GRINDER

LF2 BRYANT LECTRA FORM CNC EXTERNAL FORM GRINDER
S/N T-17487 Year:1996

STANDARD SPECIFICATIONS
CAPACITY
Minimum work OD………………………………………………… .5
Maximum work OD………………………………………………... 14
Maximum wheel OD……………………………………………….. 24
Maximum X Axis travel…………………………………………. 20
ZAxis (optional) travel……………………………… 14
Work head angular adjustment…………………………………….. 0- to 40-

SPEEDS AND FEEDS
Work speed……………………………….. Programmable 100 to 1500 RPM
Maximum X Axis feed rate……………………………………... 600 IPM
Z Axis (optional) feed rate…………………………..600 IPM

MOTORS
Wheel head motor (standard)……………………………………… 17 HP
Work head motor (standard)………………………………………. 5 HP

COOLANT
Oberlin coolant / filtration system Model OPF-7.
Floor mounted tank with 6 PVC drain.
High volume pump.
High pressure pump.
Paper filtration system.
DIMENSIONS
Floor space required…………………………………………… (L) 189 x (D)142 x (H) 96
Approximate net weight…………………………………………………………… 27,000 lbs.
Approximate gross weight………………………………………………………… 37,000 lbs.
EQUIPMENT AND FEATURES
-Hi speed motorized wheel spindle with out board support for max. 24 wheel.
- Hi speed motorized work spindle with draw rod for collet assembly adaptable for magnetic
chuck assembly.
- Belt driven roll dresser assembly mounted on work slide.
- Servo loader assembly with pneumatic grippers.
- Auto load and unload chutes.
- Hydrostatic wheel slide and work slide.
- Double thick machine guard assembly.
- Single level fluid panel mounted on back of machine.
- Hoffman air filtration system with galvanized stove pipe connection.

EQUIPMENT AND FEATURES
- Vickers hydraulic power unit with tank (dual pumps).
- Three zone chiller.
- Vogel Air / Oil Lubrication System.
- Spindle drive cabinet with one Volkmann 100 KVA drive and one Volkmann 20 KVA drive.
- Stand alone electrical cabinet.
- Marco Fire Suppression System with controller and large fire extinguisher tank.
- Hoffman wheel balancer.
- Machine Control cabinet with BG4 Controller.

The machine was designed for performing high speed grinding with hi-pressure coolant application.

Specifications are deemed accurate, however, subject to verification or prior sale.
