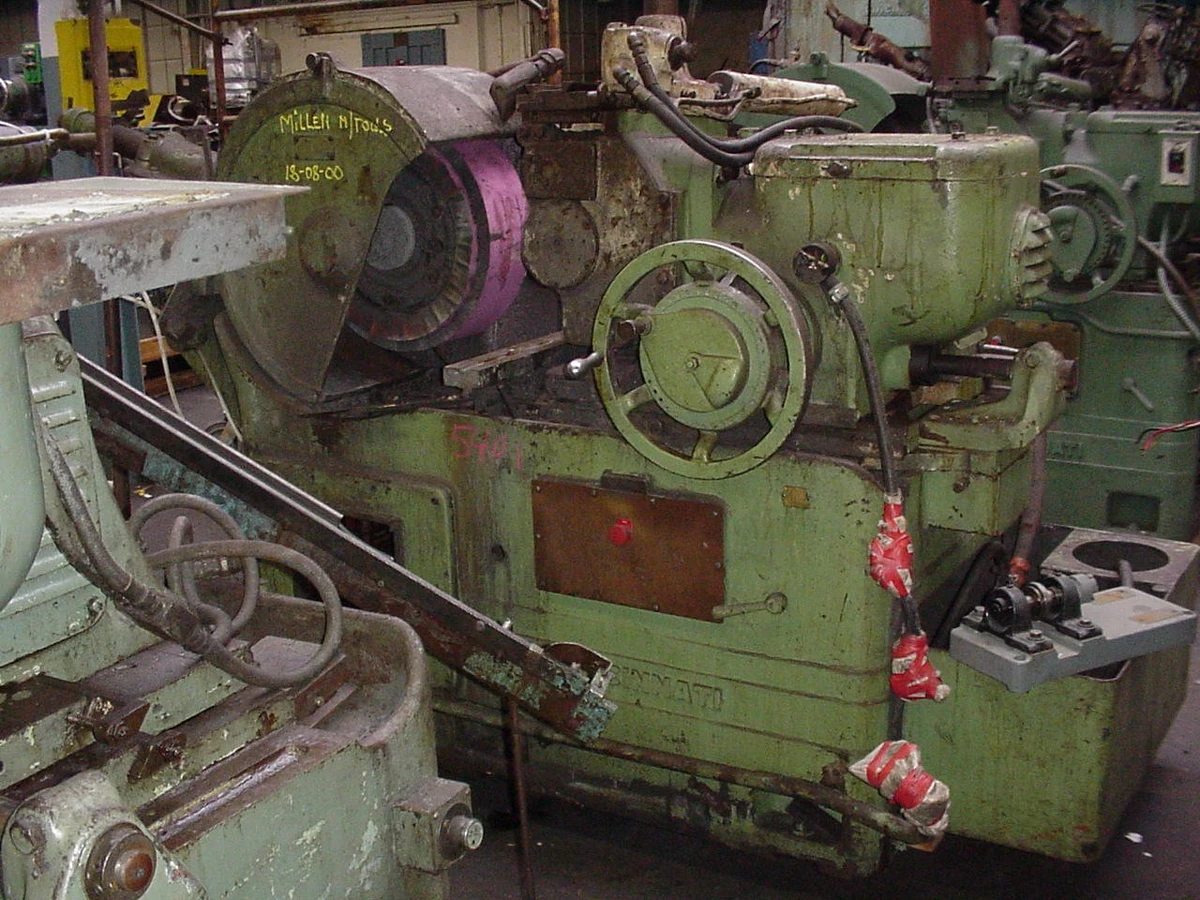

#3 EA CINCINNATI CENTERLESS GRINDER

#3 EACINCINNATICENTERLESS GRINDER

PRIVATE S/N R-5212-1tc� \l 1 S/N R-5212-1

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered, not
included in price.)
Standard thru feed work rest.................. 1/2 to 3 dia.
Heavy duty thru feed work rest................ 2 to 6 dia.
Minimum with special work rest................ 1/4 dia.
Standard in feed work rest..................... 1/2 to 6 dia.

GRINDING WHEEL SPINDLE
PRIVATE Made of heat treated chrome nickel steel, bearing diameter slapped.tc�\l 1 Made of heat treated chrome nickel steel, bearing diameterslapped.
Size: Front rear bearings............. 4 3/4 dia. x 7 1/2long

REGULATING WHEEL SPINDLE
Made of heat treated chrome nickel steel.
Size: Plain bearing at front............ 4 dia. x 5 1/2 long
Size: Plain bearing at rear............. 2 5/8 dia. x 3 3/4 long

WHEELS (Not supplied)
Grinding wheel............... 24dia. x 12 hole x 4 to 10 face
Regulating wheel............. 14dia. x 5 hole x 4 to 10 face

WHEEL TRUING EQUIPMENT
Hydraulic contour truing on grinding wheel.
Hydraulic straight truing on regulating wheel.

LUBRICATION
All spindle bearings.......................... Automatic
Other bearings................................ Individual fittings

MOTOR CONTROLS
Grinding wheel drive.......................... Multiple V belts
Regulating wheel drive........................ Worm and gear
Grinding wheel motor.......................... 30 HP
Regulating wheel motor........................ 2 HP
Lubricating pump motor...................... 3/4 HP

COOLANT SUPPLY
Pump capacity.................................25 gallons
Tank capacity................................. 76 gallons

FLOOR SPACE
Distance from floor to center of wheels....... 43 1/2
Approximate without fixtures.................. 96 1/4 x 62
Approximate weight............................11,500 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
