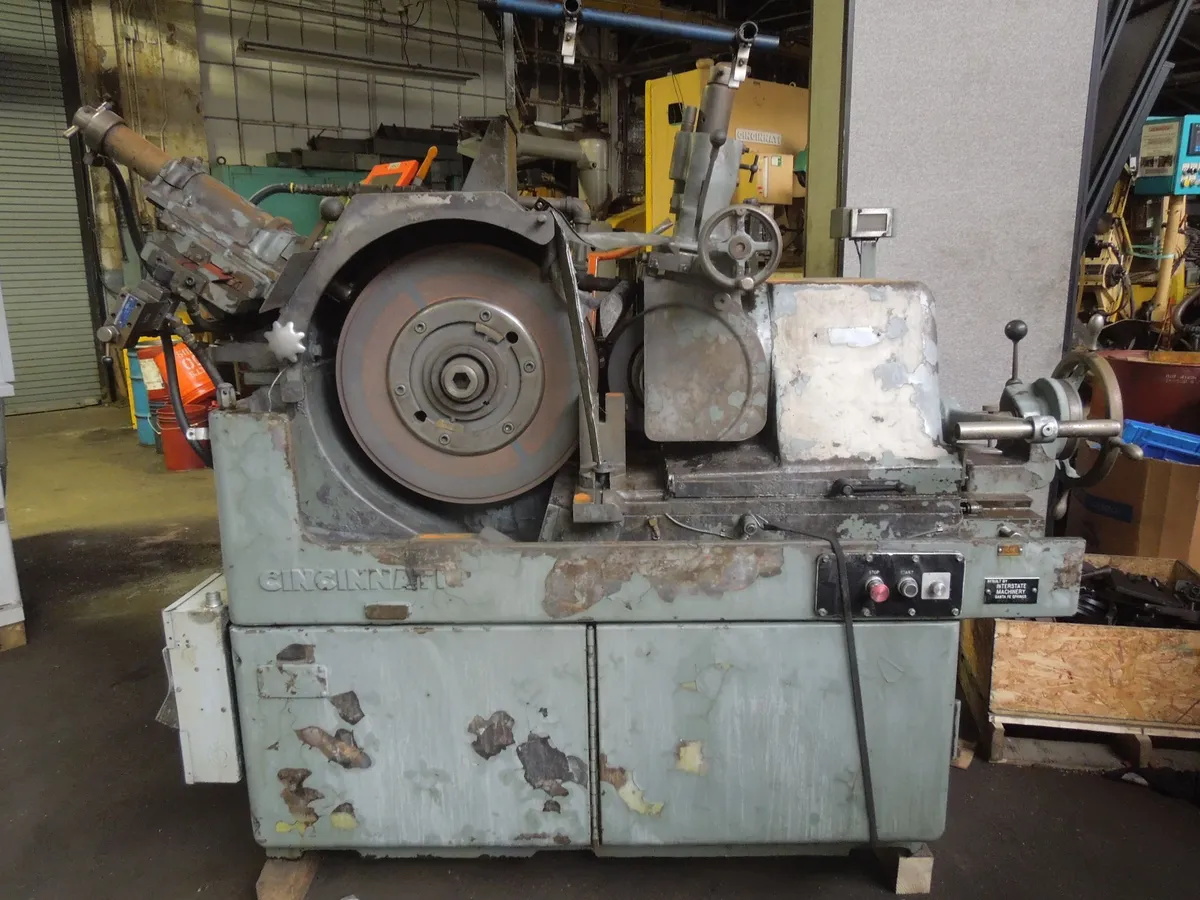

#2 OM CINCINNATI CENTERLESS GRINDER

#2 OM CINCINNATICENTERLESS GRINDER
S/N R5104-4

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest...................... 1/16 to 3 1/2 dia.
Low thru feed work rest.................... 2 to 4 3/4 dia.
Bar work.............................. 1/8 to 2 dia. 18 long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............. 12
Maximum diameter...................................24
Minimum diameter................................... 14

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole................ 5
Maximum diameter................................... 12
Minimum diameter......................................9

MOTOR DRIVES
Grinding wheel.......................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid.............................................1/4 HP

OVERALL DIMENSIONS
Floor space:...................................... 53 x 86
Weight.............................................6,400 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Screw-type contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Grinding wheel reg wheel profile truing units.
Hydraulic traverse grinding wheel truing.
6” Infeed work rest with ejector.
Manual traverse grinding wheel truing.
No gear box.
Upgraded with right angle drive motor.

Specifications are deemed accurate, however, subject to verification or prior sale.
