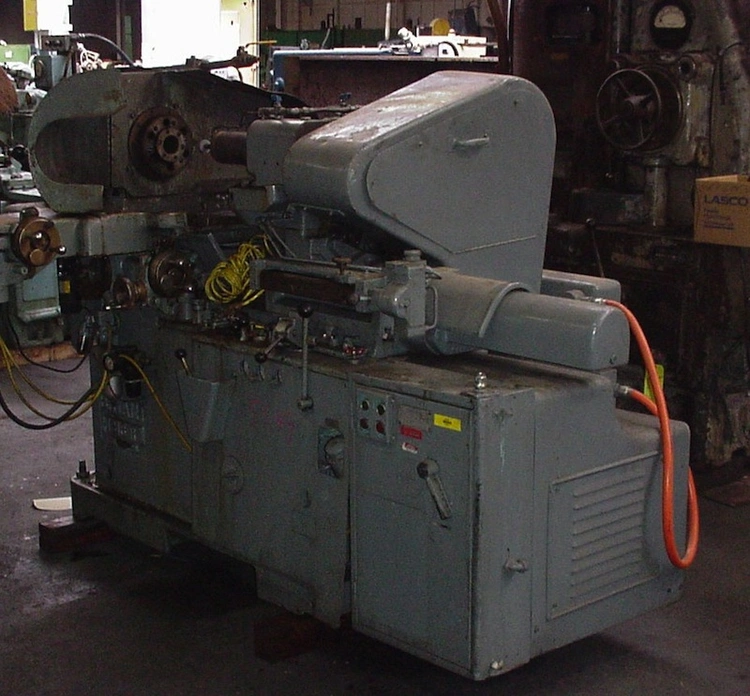

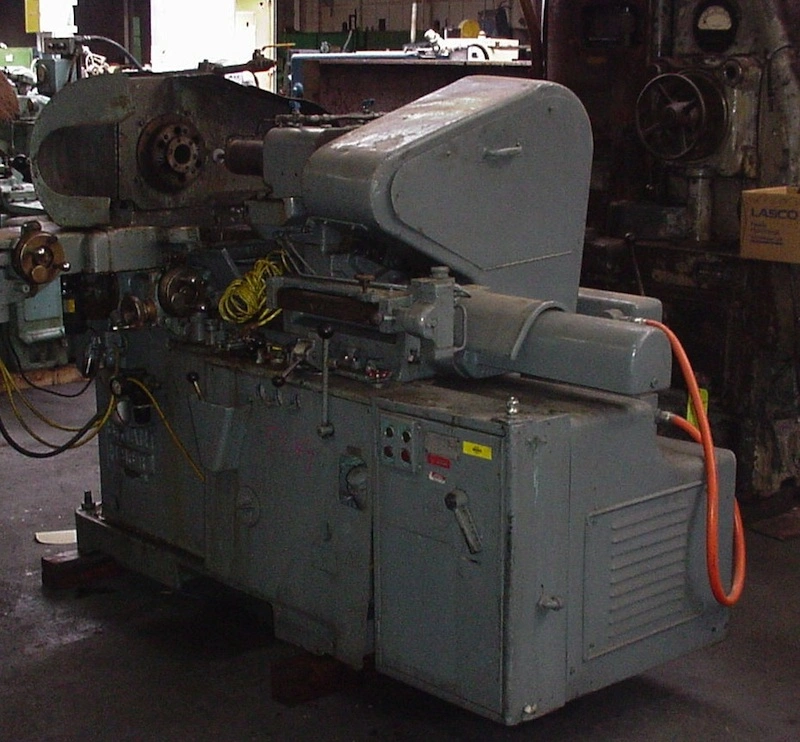

1316 R BRYANT BORE AND FACE INTERNAL GRINDER

1316 R BRYANT BORE ANDFACE INTERNAL GRINDER

S/N R 10359Year: 1952

STANDARD SPECIFICATIONS
Total swing....................................... 16
Grinding stroke - plain spindle................... 9
cam lock spindle................ 8
Total wheel slide stroke.......................... 20
Max. travel to work table -including feed........ 9.75
Work head adjustable to grind included angles to.. 90�
Work spindle R.P.M. (either direction infinitely)
variable..........................................50 to 650
Approx. net weight................................ 8,300
Floor space....................................... 88 x 126

EQUIPMENT FEATURES
2 Bryant spindles.
440 Voltage.
Hydraulic single point truing.
Dwell spark out timer.
Auto feed.
Reverse feed timer.
Forward and reversing speeds.
Dual feeds.
Cam lock spindle nose.
Attached electrics.
Hydraulic work head motor.

The Bryant No. 1316-R Hydraulic Internal Grinder has two wheel heads. This speeds up production and provides greater accuracy on pieces whose face and bore, face and O.D. or bore and O.D. must be held in close relationship. The two wheel heads are carried on a common longitudinal slide. The work head is mounted on a hydraulic cross slide coming toward the operator for ease of loading and gaging work and for indexing from one wheel head to the other.

The 1316-R has two independent feed screws providing separate control for each wheel head when grinding bore and O.D. or multiple diameters. A multiple facing stop is provided to control stock removal when facing.A turret stop is also provided to locate the cross slide for multiple operations.

Specifications are deemed accurate, however, subject to verification or prior sale.
