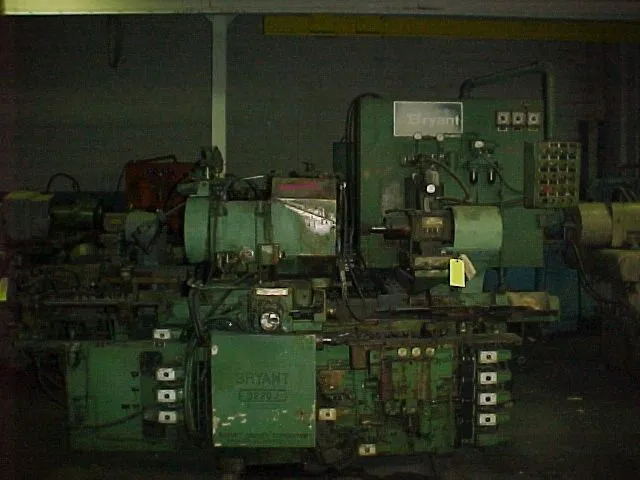

Used 1972 BRYANT 3220J | GRINDERS, INTERNAL

3220J BRYANT HOLE & FACE COMBIMATION
S/N N-14830    Year: 1972
STANDARD CATALOG SPECIFICATIONS
Total swing.............................. 20"
Grinding stroke (maximum hold depth)..... Camlock spindle  8"
Traverse stroke, maximum................. 20"
Total cross slide movement............... 3.25"
Work head is adjustable for grinding
included angles up to.................... 60 degrees
Work spindle, RPM
Infinitely variable...................... 50 to 650 RPM
Optional................................. 25 to 325 RPM
Capacity of oil reservoir................ 40 gallons
Capacity of coolant tank................. 100 gallons
Approximate net weight................... 10,000 lbs.
Floor space w/coolant tank & oil tank.... 88" x 126"
EQUIPMENT & FEATURES
Bryant belted spindle with mist lube.
Single diamond dresser w/ facing capabilities.
3" hole thru spindle.
Spark out timers.
Jump slide on work head.
Specifications are deemed accurate, however, subject to verification or prior sale.
