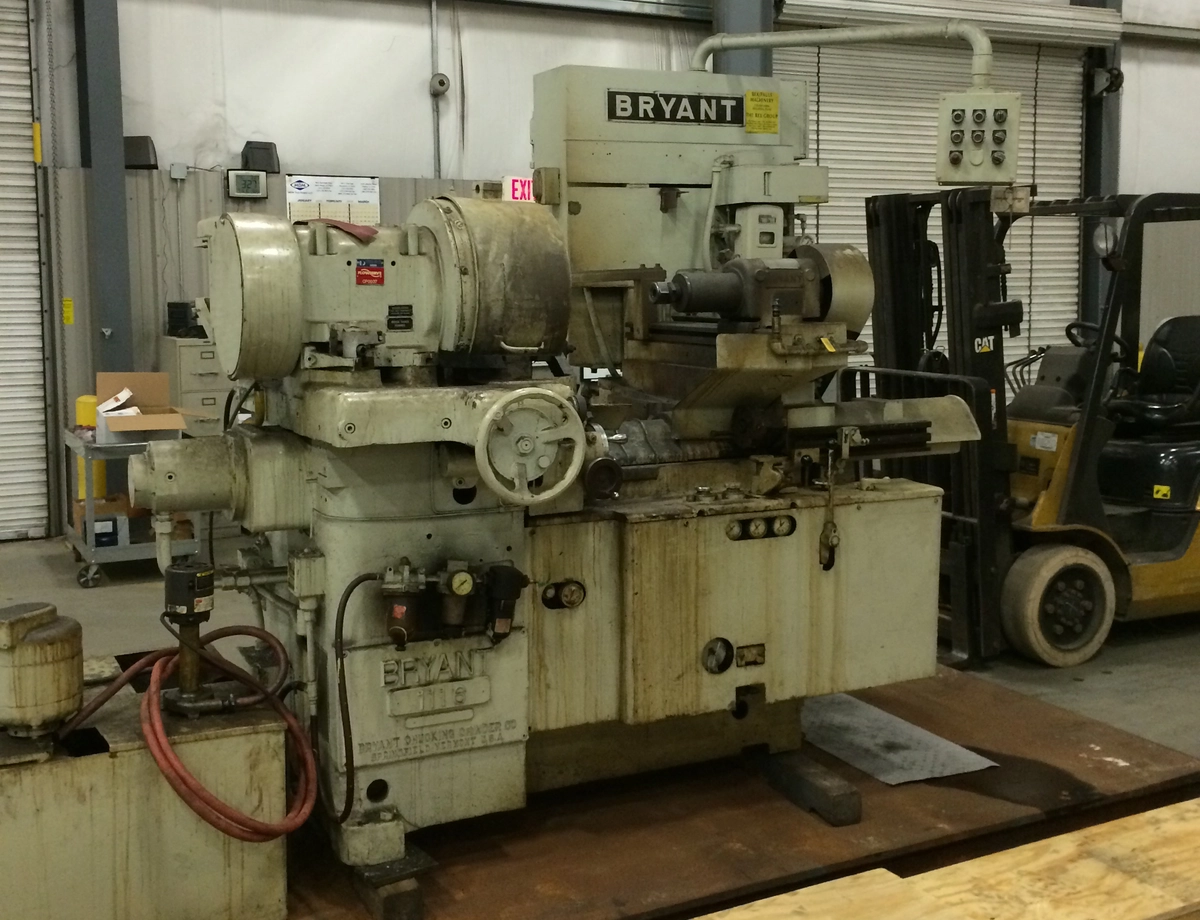

#1116 BRYANT INTERNAL GRINDER

1116 BRYANT INTERNAL GRINDER
S/N N14020 Year: 1971

STANDARD CATALOG SPECIFICATIONS
Total chuck swing (without guard) work head on center. 16
Traverse stroke(maximum)............................. 20
Grinding stroke....................................... .375 to 8
Work spindle RPM (either direction of rotation)....... 50 to 650
Table movement............Forward.................... 7
Table movement............Rear....................... 2.75
PRIVATE Work head adjustable to..............................45 degreestc�\l 1 Work head adjustable to\:.............................. 45degrees
(Will grind 90 degrees included angle)

EQUIPMENT FEATURES
Bryant cartridge spindle.
Hydraulic single point diamond dresser.
Cam lock work head.
Face stop.
Attached electrical.
Compensation.

Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
