Used 1964 BRYANT 3216 | GRINDERS, INTERNAL

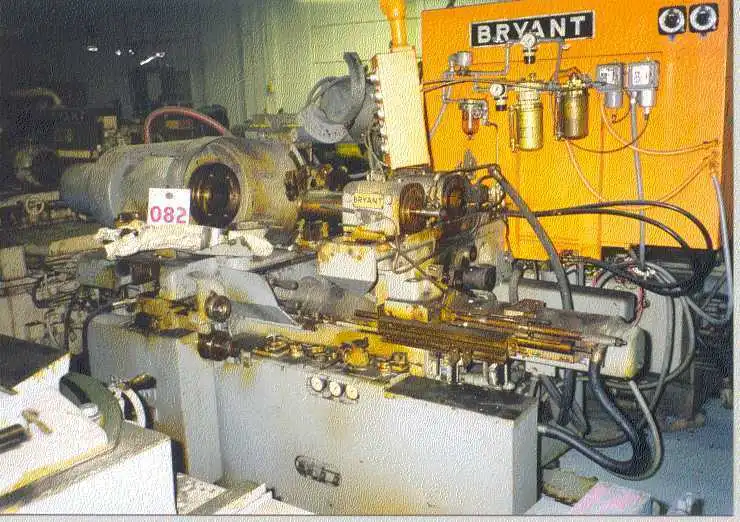

3216J BRYANT INTERNAL GRINDER
S/N N 13488    New: 1964
STANDARD CATALOG SPECIFICATIONS
Total swing........................................ 16"
Grinding stroke (maximum hold depth).......... Camlock spindle  8"
Traverse stroke, maximum........................... 20"
Total cross slide movement......................... 3.25"
Work head is adjustable for grinding
included angles up to.............................. 60 degrees
Work spindle, RPM
Infinitely variable............... 50 to 650 RPM Optional.............. 25 to 325 RPM
Capacity of oil reservoir.......................... 40 gallons
Capacity of coolant tank........................... 100 gallons
Approximate net weight............................. 10,000 lbs.
Floor space w/coolant tank & oil tank.............. 88" x 126"
EQUIPMENT & FEATURES
Bryant spindle bolted with mist lube - 1 extra housing.
Barnes drill 1/4 filtration unit.
4" hole thru work head.
Spark out timers.
Hydraulic single point auto diamond dresser.
Jump slide on table feed.
440 V, 3 P.H., 60 Cycle.
Push button control station.
Specifications are deemed accurate, however, subject to verification or prior sale.
