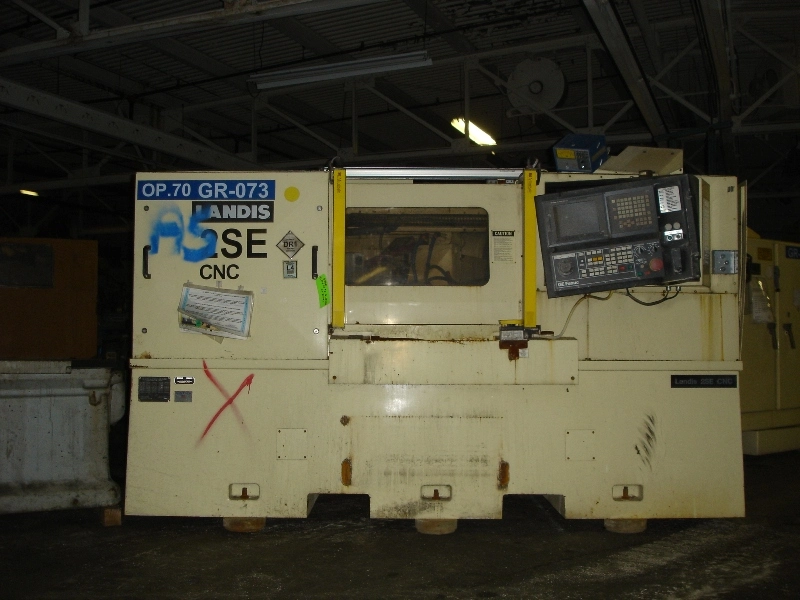

10 x 20 LANDIS 2SE CNC 30° ANGLE HEAD PLAIN GRINDER

10 x 20 LANDIS 2 SE CNC 30 ANGLE HEAD PLAIN GRINDER
S/NLT-92407 Year: 1999

STANDARD SPECIFICATIONS
Swing over table…………………………………………………… 10
Distance between centers………………………………………….. 20
Grinding wheel size……………………………………………….. 24 x 5x 12
Wheel speed……………………………………………………….. 8500 SFPM
Head stock work speed……………………………………………. 30-600 RPM
Head stock spindle adaptor………………………………………... 5-A 2
Stroke of tail stock center…………………………………………. 4
Tail stock work center…………………………………………….. 4 MT
Approximate weight……………………………………………….. 25,000 lbs.

EQUIPPED WITH
Heavy duty cast iron bed.
15 HP AC Grinding spindle w/Allen Bradley variable frequency drive to maintain 43 meters/second (8500 SFPM) from new to worn grinding wheel.
Servo motor controlled table traverse with ball screw.
Servo motor controlled in feed with ball screw for precision in feed.
Drive and ball screw for carriage traverse.
Variable speed head stock drive 30 to 600 RPM.
Integrated hydraulic system.
Complete electrical controls.
Fanuc 21I CNC Control with full CRT.
Key board.
Manual over rides.
Permanently active diagnostics.
Fault diagnostics.
Standard cycle of automatic door closing.
Foot stock center advance.
Chuck clamp.
Work start.
Carriage traverse.
Rapid wheel head advance.
Approach feed.
Fast feed.
Slow feed.
Micro feed.
Dwell.
Rapid wheel head retract.
Air chucking with collet chuck system.
SBS automated wheel balancer.
Variable speed wheel drive maintains constant surface speed for new to worn wheel.
Live spindle head stock can be programmed for selected speed or approximately constant work speed.
Head stock mounted diamond dresser to holder.
Live spindle tail stock with programmable center movement.

Specifications are deemed accurate, however, subject to verification or prior sale.
