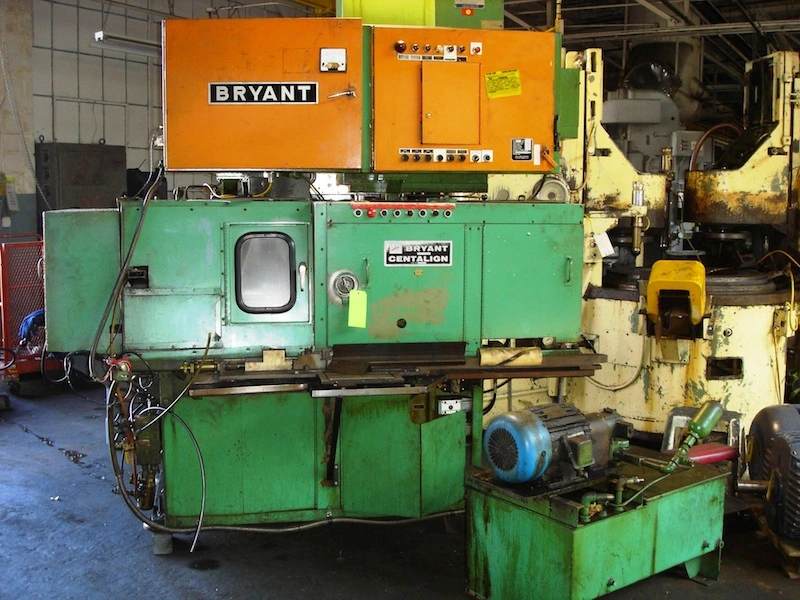

BRYANT-C CENTALIGN I.D. GRINDER

BRYANT-C CENTALIGN I.D. GRINDER

S/N L-14291

STANDARD CATALOG SPECIFICATIONS
Maximum swing diameter................................. 10
Maximum O.D. of work part, auto loading................ 4
Maximum grinding stroke................................ 1
Total wheel slide stroke............................... 8
Maximum cross feed, universal auto-feed................ .045
Maximum cross feed, cam auto-feed on dia............... .030
PRIVATE Work head adjustable to grind, included angle.........60 degreestc�\l 1 Work head adjustable to grind, included angle.......... 60degrees
Work head spindle flange diameter (standard)
Chucker only........................................... ASA #2.5

MOTORS
Cam drive motor................ 1/4 HP, AC Race grinder, 1200 RPM
Cam drive motor................ 1/3 HP, DC Bore grinder
Variable speed.................Maximum 1200 RPM
Cross feed motor...............DC Variable speed max. 1800 RPM
Hyd. work drive motor.......... Variable speed 2,000 RPM max.
Hyd. pump drive motor..........3 to 10 HP, AC, 1800 RPM

SPEEDS
PRIVATE Work head............... Infinitely variable from 200 to 1500 RPMtc� \l 1 Work head................Infinitely variable from 200 to 1500 RPM
Grinding stroke......... Up to 460 strokes per minute
Traverse stroke.........Approximately 50 feet per minute

TANK CAPACITIES
Grinding coolant....................................... 74 gallons
Wheel spindle coolant.................................. 15 gallons
Hydraulic power unit................................... 30 gallons

FLOOR SPACE WEIGHT
Approximate net weight................................. 7,000 lbs.
Machine floor space without coolant tank and
hydraulic units........................................ 85 x 36
Machine floor space with coolant tank.................. 96 x 63

Specifications are deemed accurate, however, subject to verification or prior sale.
