BRYANT MODEL 20 INTERNAL GRINDER

BRYANT MODEL 20 INTERNAL GRINDER

S/N K-16165 Year:1974

STANDARD SPECIFICATIONS
Maximum swing………………………….……………………….…… 10
Maximum O.D. of work piece…………………………………….…… 4.5
Minimum O.D. of work piece…………………………………………. .375
Maximum length of work piece……………………………………….. 2.0625
Minimum length of work piece………………………………………... .3125
Maximum wheel slide stroke………………………………………...…. 7
Reciprocation stroke…………………………………………………….. 0-.5
Total cross feed travel (on radius)………………………………………. 0-.75
Automatic feed stroke (on diameter)……………………………………. 0.08
Jump travel………………………………………………………………. 0.3

ANGULAR ADJUSTMENT
With single point or rotary diamond, shoe centerless or chucker……….. 31 Degree
With diamond roll or form diamond, shoe centerless or chucker……….. 31 Degree
(depending upon work piece – consult factory)
With radial dresser, shoe centerless - 20 Degree, chucker - 10 Degree
Work drive motor – A.C. 1800 R.P.M., 3/4 H.P. with shoe centerless fixture –
1 1/2 H.P. with chucker, automatic load.

Wheel drive – high frequency wheel heads…………………………… 150,000 R.P.M. –
Belt drive to 50,000 RPM7 1/2 or 10 HP, A.C., 3600 RPM
Solid State or Relay Logic
Floor space – without tanks……………………………………………. 67 x 56
Grinding coolant tank………………………………………………….. 74 gallons
High frequency wheel head coolant tank……………………………… 15 gallons
Approximate net weight…………………………………………….…. 7,500 pounds

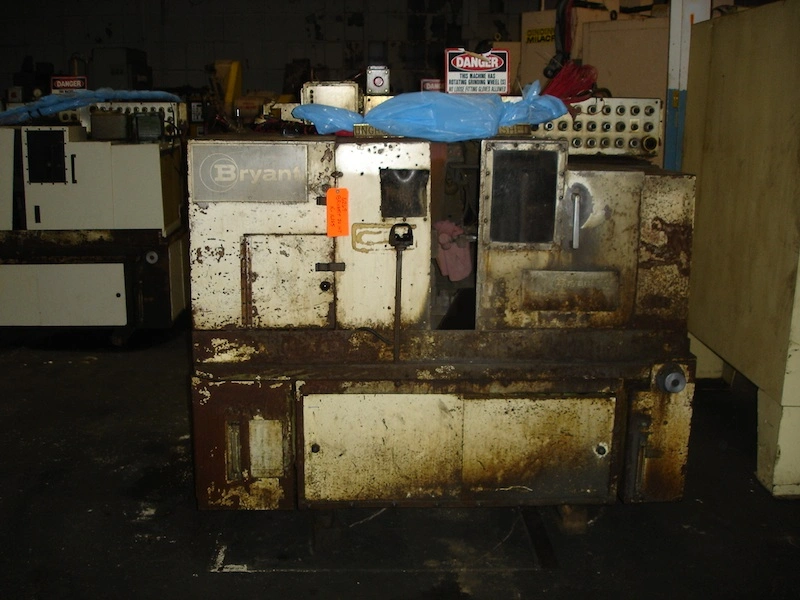

The Bryant Model 20 Internal Grinder is a fully automatic, high production machine for the precision grinding of internal surfaces. It will handle with equal ease, straight bores, taper bores, and a variety of internal forms. Capable of either shoe centerless or chucking operation, it’s the ideal tool for grinding bushings, gears, sleeves, front wheel drive parts, ball, straight and taper roller bearing components, and similar items.

This unique machine was designed to save space and weight, yet retain the productive capability of much larger grinders. Approximately the size of a 5 foot cube, it does all this while offering greater flexibility. Time-tested Bryant features, combined with advanced design concepts, result in a machine with exceptional versatility.

Specifications are deemed accurate, however, subject to verification or prior sale.
