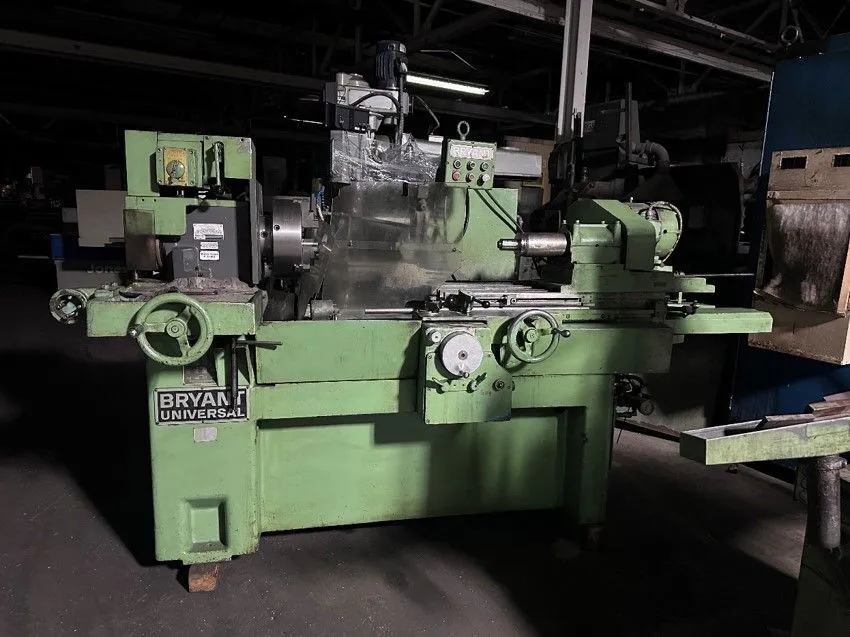

BRYANT UNIVERSAL JOB8710

BRYANT UNIVERSAL INTERNAL GRINDER

STANDARD CATALOG SPECIFICATIONS
Swing standard chuck guard,max.................. 406mm
Swing without chuck guard,max................... 584mm
Swing work head swiveled 90degrees max.......... 305mm
Angular adjustment of workhead.................. 90�
Wheel slide cross feedtravel.................... 38mm
Work head cross slidetravel..................... 394mm
Table travel,max................................ 508mm
Grindingstroke.................................. 3.1mm to 406mm
Work spindle,R.P.M.............................. 50 - 650
Optional).......................................25 - 325
Work head spindle flange 6Type D1 ASA
Standard cam lock spindle nose
Floor space with -
Coolant tank.....................................2819mm x 20.89mm
Approximate net weight,lbs....................... 6800

EQUIPMENT FEATURES
Bryant cartridge spindle.
Variable speed hydraulic workhead.
Separate hydraulic unit 7.5 H.P.
Single point diamond dressermanual.
305mm 3 Jaw chuck.
Cross sliding work head.
440 V. 3PH. 60 Cycle.
