SUPERMAX YCM-2VASK JOB8709

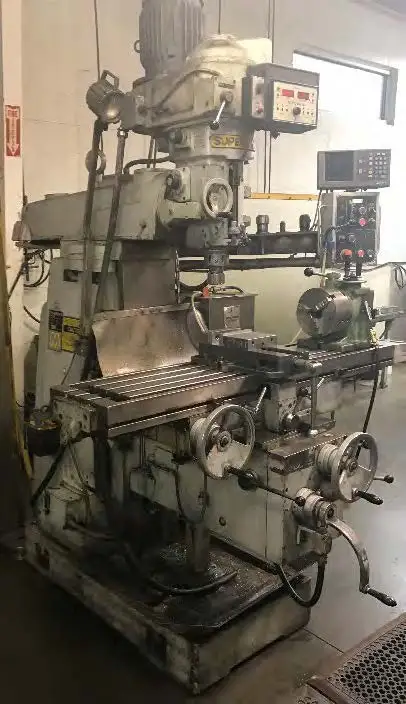

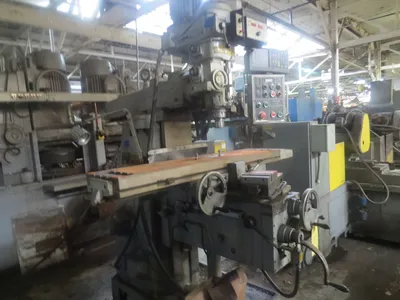

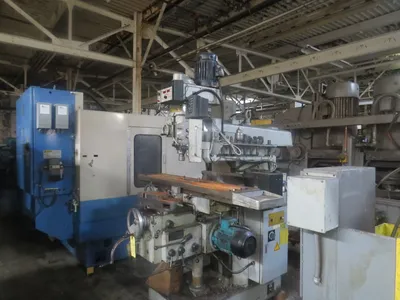

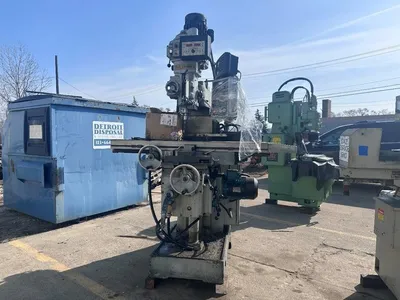

SUPERMAX YCM-2VASKVERTICAL MILLING MACHINE

S/N JOB8709 Year: 1993

STANDARD SPECIFICATIONS

TABLE
Working Surface Of Table……………… 51.125”x 11”
T-Slots…………………………………………………………… 0.625”x3”x 2.375”
Longitudinal Travel…………………………… 39.375”
Cross Travel……………………………………………… 11.75”
Vertical Travel……………………………………… 17.75”

Longitudinal Cross Feeds (12 Steps)
(PerMin)
(60 C)……………………………………………………………… 0.625”-27.5”
(50 C)……………………………………………………………… 0.5”-22”

Longitudinal Cross Rapid Feeds
(PerMin)
(60 C)……………………………………………………………… 118”
(50 C)……………………………………………………………… 98.4375”

Vertical Rapid Feed
(PerMin)(60 C)………………………………………… 31.5”
(50 C)……………………………………………………………… 26.1875”

VERTICAL MAIN SPINDLE
Distance Spindle To Table Surface………………………………… 4.125”- 21.875”
Distance Spindle Center To Column Surface…………… 6.6875”- 27.9375”
Nose Taper………………………………………………………….NST 40
Spindle Speed (Infinitely Variable)…………………………… 75-4220 RPM
Quill Movement……………………………………………………………………………………… 5.5”
Vertical Feed Speed ……………………………………………………………………… 0.0015, 0.003, 0.005
Inclined Angle (R L Each)……………………………………………………… 45 Degrees

RAM
Travel Of Ram…………………………………………………………… 21.25”
Swivel Angle Of Ram…………………………………………… 360 Degrees

MOTORS
Vertical Main Spindle……………………………………… 3.7 KW
Table Longitudinal Cross Feeds…………… 1.5 KW
Table Vertical Rapid Feed…………………………… 0.75 KW
Coolant Pump……………………………………………………………… 75 W
Electromagnetic Pump……………………………………………10 W

DIMENSIONS
Weight……………………………………………………………………… 2810KG
Floor Area…………………………………………………………… 115” x 77.25”
Height……………………………………………………………………… 92.125”

Specifications are deemed accurate, however, subject to verification or prior sale.
