JONES - SHIPMAN 5 X 20 JOB8703

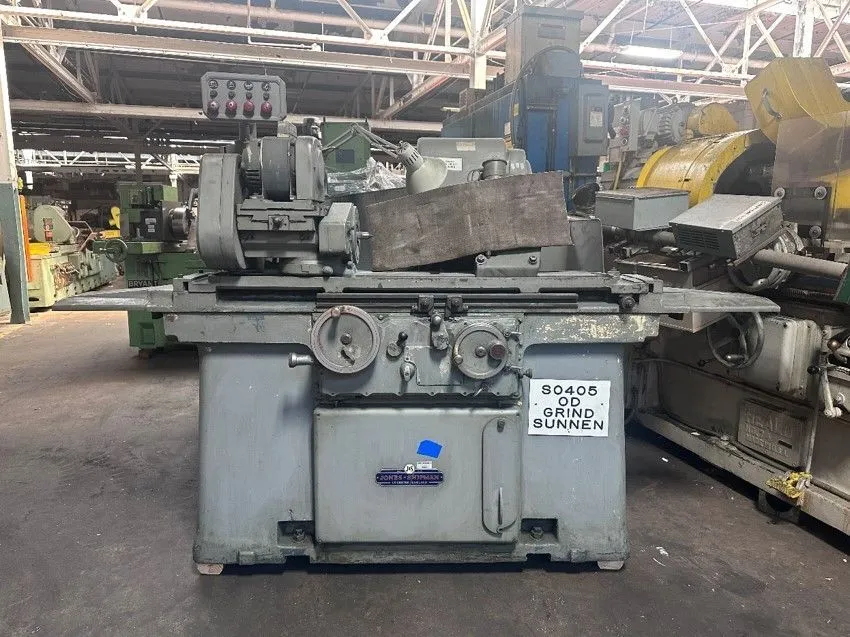

JONES & SHIPMAN 1300 5”X 20” UNIVERSAL CYLINDRICAL GRINDER

S/N JOB8703 YEAR: 1979

STANDARD CATALOG SPECIFICATIONS

Center Height……………………………………………………………………………………………5”
Max Job Diameter……………………………………………………………………………………10”
Max Job Length…………………………………………………………………………………………27”
Grinding Wheel…………………………………………………………………………………………12”x 1.9”x 5”
Workhead Speed…………………………………………………………………………………………40-320 RPM
Table Rotation…………………………………………………………………………………………18-20 Degrees

EQUIPPED WITH
Micro-Feed adjustments on both table & wheel-head travels.
Coolant tank & pump.
Tailstock dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
