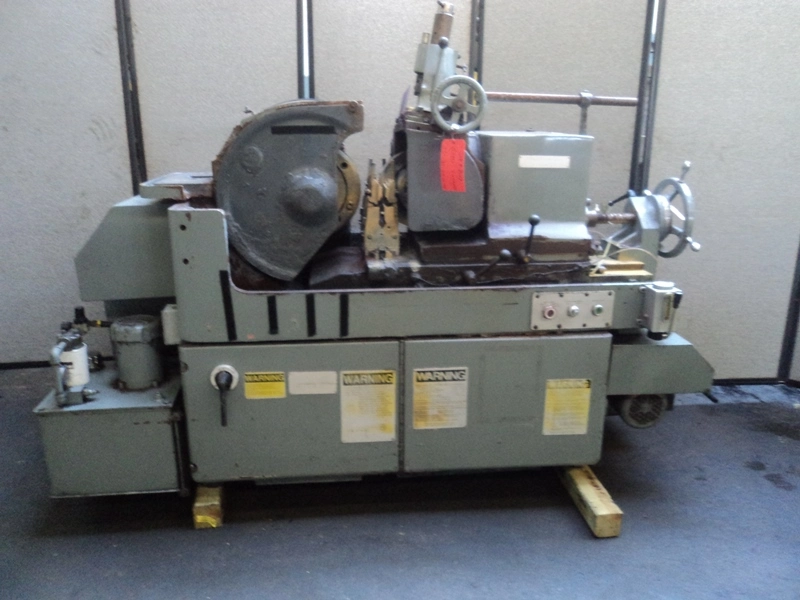

#2 OMV CINCINNATI CENTERLESS GRINDER

#2 OMV CINCINNATI CENTERLESS GRINDER
S/N JBS-103-00-HD Year:1993

STANDARD SPECIFICATIONS
Work diameter capacity………………………………………. 0 to 4.5
Work diameter using standard work rest……………………… 0.062 to 3
Grinding wheel size - maximum…...…………… 20 diameter x 12 hole x up to 8wide
Grinding wheel size – minimum………………………...…… 15 diameter
Grinding wheel surface speed – new wheel………………….. 6500 SFPM
Regulating wheel size – maximum.……………… 12 diameter x 5 hole x up to 8wide
Regulating wheel size – minimum…………………………… 9 diameter
Regulating wheel speed – infinitely variable………………… 12 to 300 RPM
Standard drive motor for grinding wheel…………………….. 15 HP
Coolant tank capacity (extra cost equipment)………………... 50 gallon
Coolant pump capacity (extra cost equipment).…………….... 30 gallon per minute
Floor space……………………………………………… 88 L-R x 58 F-B x 62 Height
Approximate weight…………………………………………. 8500 lbs.

STANDARD MACHINE FEATURES
Rugged cast iron construction that results in a dampening effect.
Filmatic grinding wheel spindle mounted directly to the machine bed for rigidity.
Automatic lubrication to both the grinding and the regulating wheel spindles.
Sturdy swivel plate supporting double slide in feed system for fast taper correction.
Infinitely variable hydrostatic drive for the regulating wheel spindle.
Manual slide positioning with T-handle and/or hand wheel actuated in feed screw.
Hydraulic powered profile truing for grinding wheel and manual dressing compensation of the diamond. Hydraulic power for regulating wheel is optional.
One set of machine documentation including operator and parts manual.
230or 460 volt, 3 phase, 60 hertz electrics.

The #2 size Precision Centerless Grinder combines operational simplicity and operational reliability in a budget-priced precision machine tool. It is a general purpose grinding machine suitable for a wide variety of thru feed and in feed (plunge grinding) applications. Close tolerance straight, tapered, formed, and multiple diameter parts can be produced effectively and efficiently in batch or job lot production environments. And, the OMV accepts the same tooling that is used everyday on existing Cincinnati Model EA or model OM or model OMV Centerless grinders. It is estimated there are over 3000 of these models in operation in USA.

Specifications are deemed accurate, however, subject to verification or prior sale.
