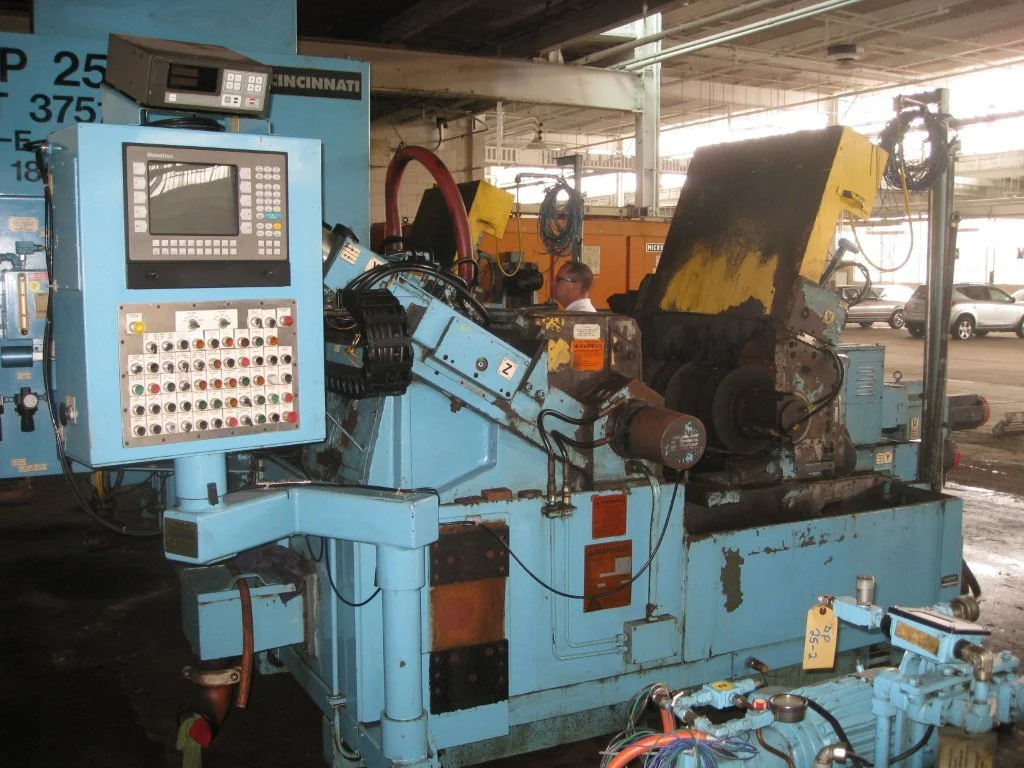

3-500 CINCINNATI TWIN GRIP CENTERLESS GRINDER

3-500 CINCINNATI TWIN GRIP CENTERLESS GRINDER

S/N HC-94009 Year: 1998

STANDARD SPECIFICATIONS
Grinding wheel size……………………………………… 24” x 20” x 12”
Regulating wheel size……………………………………. 14” x 20” x 6”
Work O.D. range…………………………………………. 1/4 to 6
Grinding wheel drive……………………………………... 40 HP AC Motor
Grinding wheel surface speed……………………….. 33 MPS (6500 SFPM)
Spindle lubrication pump…………………………………. 1 HP AC Motor
Regulating wheel drive……………………………………. 300 in. lb AC Motor
Machine weight………………………………………......…. 22,000 lbs.

Fanuc 160-MC Control
40 HP main grinding wheel spindle motor.
Spindle speed…………………………………………….. 1034 RPM
SBS Model 2500 wheel balancer.
Wheel diameter…………………………………………… 24”
Wheel width………………………………………………. 20”
Nematron Touch Screen.
Trabon lubrication.
Fanuc Servo dual slide in feed lower (X-Axis) and upper(U-Axis).
Fanuc Servo regulating wheel transmission.

STANDARD SPECIFICATIONS
CNC rotary diamond grinding wheel dresser with Fanuc servo diamond advance and traverse.
Regulating wheel dresser with stepper motor diamond advance with Fanuc servo traverse.
External hydraulic tank.
Coolant pump back unit.
Attached electrical panel.

Specifications are deemed accurate, however, subject to verification or prior sale.
