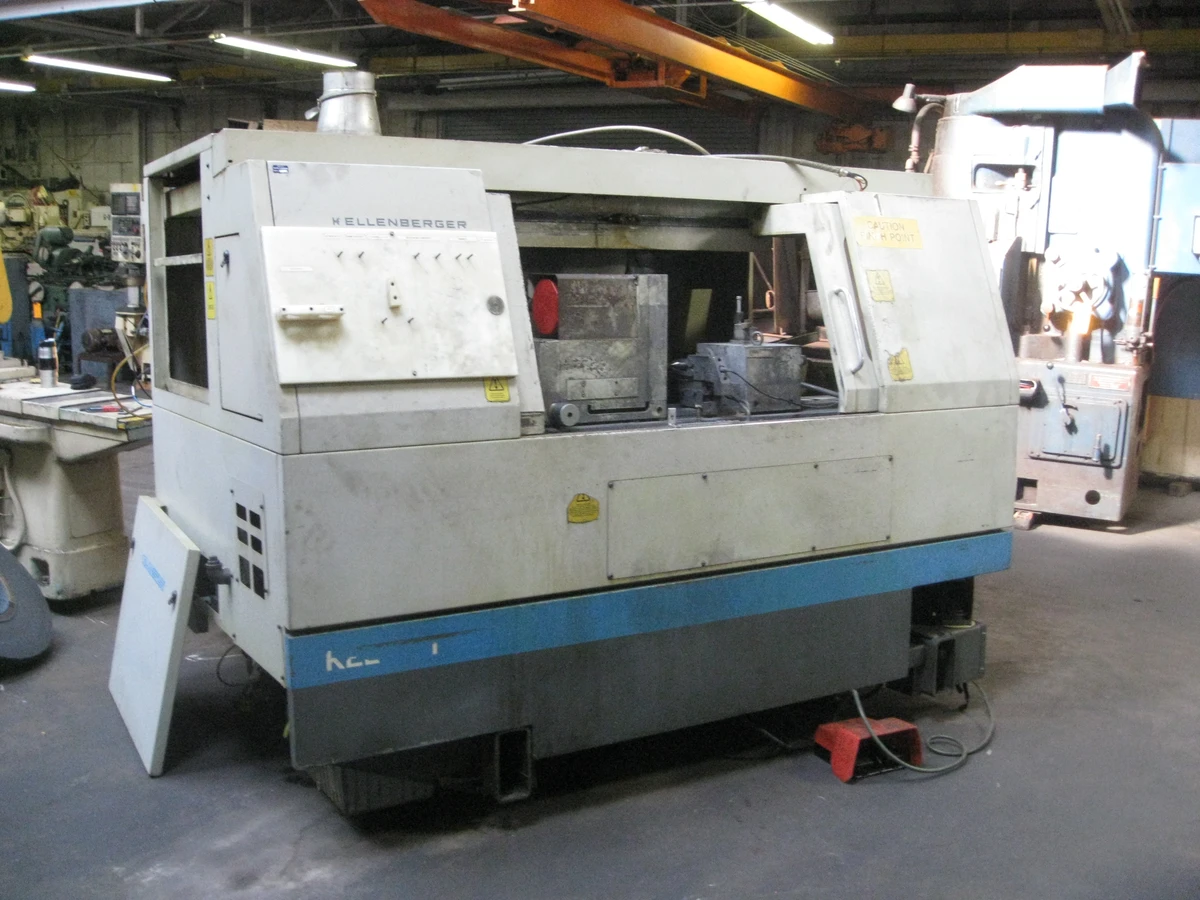

KELLENBERGER URS 125/430 GK-143

KELLENBERGER KEL-VISION TYPE URS 125/430
UNIVERSAL CNC GRINDER
S/N GK-143 Year: 1997

STANDARD SPECIFICATION

CAPACITY
Center Height………………………………………………4.92”
Free Clamping Length Max………………………………...30”
Grinding Length Max ……………………………………...17”
Workpiece Diameter Max....................................................9.8”

Wheel head Drive..................................................................7.5KWOptional 9.8 KW
Grinding Wheel RH..............................................................20” x 3”
Peripheral Speed Max...........................................................6890 SFPM Optional 8860

Universal Swiveling Wheel Head
Manual Swivel

Compound Slide (Z Axis) Max Slide Travel.....................................25.5”
Compound Slide (Z Axis) Max Speed..............................................472 IMP
Compound Slide (Z Axis) Max Speed Max Resolution....................0.1 UM

Grinding Slide (X Axis) Max Travel.................................................12.6”
Grinding Slide (X Axis) Max Speed.................................................236 IPM
Grinding Slide (X Axis) Max Resolution...........................................0.1 UM

STANDARD SPECIFICATIONS
Workhead Drive...........................................................................3KW
Swivel RangeMicro Corrector..................................................... /- 60”
Spindle Speed (Infinitely Variable).............................................. 8 to 800 RPM
Spindle Nose ASA........................................................................5/MT 5
Spindle Bore...................................................................................1.496”
Max Weight of Workpiece Grinding Between Centers................. 220 LB
Permissible Load............................................................................74FT-LBS

Tailstock Holding Cone.................................................................... MK4
Lift of Tailstock Sleeve..................................................................... 2”

Dimensions.........................................................................98”Wide x 79” Deep 71” Tall
Approx. Weight..................................................................11,770 LBS
EQUIPPED WITH:
Fanuc 18TB CNC Controls
Control Gaging 760
The x z axis slides are underneath the wheel head.
The wheel head is a manual swivel2.5 degrees.
Marposs E20 flagging device.
460 volts.
The base is made from hardingeharcrete (epoxy granite).
20” OD grinding wheel
Dual palm safety start.
Single Point Dresser on tail stock.
Fanuc Servo driven head stock.

Specifications are deemed accurate, however, subject to verification or prior sale.
