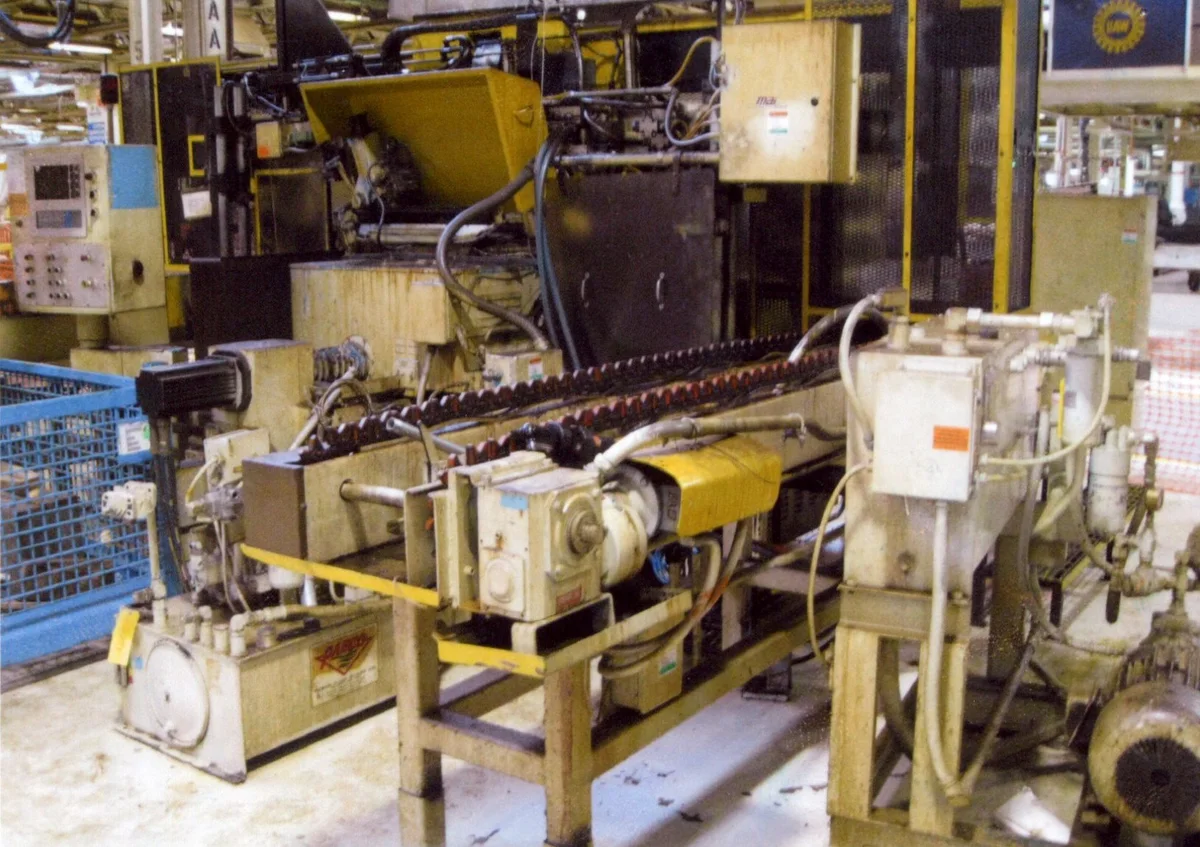

GOLD CROWN GC-660 CENTERLESS GRINDER

GOLD CROWN GC-660 CENTERLESS GRINDER

S/N GC6609501Year: 1996

STANDARD SPECIFICATIONS
Grinding wheel size……………………………………… 24” x 26” x 12”
Regulating wheel size……………………………………. 14” x 26” x 6”
Work O.D. range…………………………………………. 1/4 to 6
Grinding wheel drive……………………………………... 40 HP AC Motor
Grinding wheel surface speed…………………………….. 33 MPS (6500 SFPM)
Spindle lubrication pump…………………………………. 1 HP AC Motor
Regulating wheel drive……………………………………. 300 in. lb AC Motor
Machine weight……………………………………………. 25,000 lbs.
Fanuc O-GC.
40 HP main grinding wheel spindle motor.
Spindle speed…………………………………………….. 1034 RPM
SBS Model 2500 wheel balancer.
Wheel diameter…………………………………………… 24”
Wheel width………………………………………………. 26”
Trabon lubrication.

STANDARD SPECIFICATIONS
External hydraulic tank.
Fanuc Servo diamond advance and traverse on grinding wheel dresser.
Fanuc Servo for regulating wheel dress traverse.

Specifications are deemed accurate, however, subject to verification or prior too change
