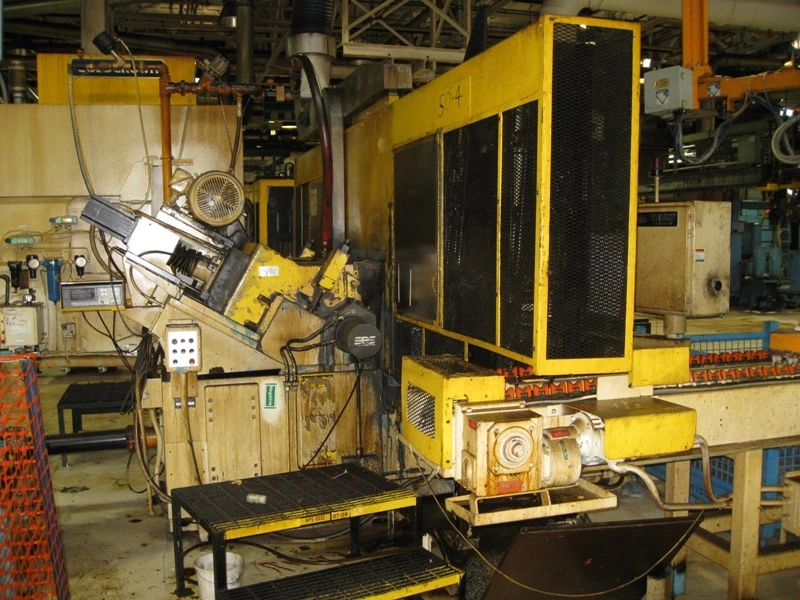

GOLD CROWN GC-660 CENTERLESS GRINDER

GOLD CROWN GC-660 CENTERLESS GRINDER
S/N GC66094-02 Year: 1995

STANDARD SPECIFICATIONS
Grinding wheel size……………………………………… 24” x 26” x 12”
Regulating wheel size……………………………………. 14” x 26” x 6”
Work O.D. range…………………………………………. 1/4 to 6
Grinding wheel drive……………………………………... 40 HP AC Motor
Grinding wheel surface speed…………………………….. 33 MPS (6500 SFPM)
Spindle lubrication pump…………………………………. 1 HP AC Motor
Regulating wheel drive……………………………………. 300 in. lb AC Motor
Machine weight……………………………………………. 25,000 lbs.

Modicon CNC Controls.
40 HP main grinding wheel spindle motor.
Spindle speed…………………………………………….. 1034 RPM
SBS Model 2500 wheel balancer.
Wheel diameter…………………………………………… 24”
Wheel width………………………………………………. 26”
Modicon Panel Mate Plus Screen.
Modicon Servo in feed system.
Auto lubrication.

STANDARD SPECIFICATIONS
External hydraulic tank.
Diamond roll grinding wheel dresser with Modicon Servo for diamond advance.
Modicon Servo for regulating wheel dresser traverse.

Specifications are deemed accurate, however, subject to verification
