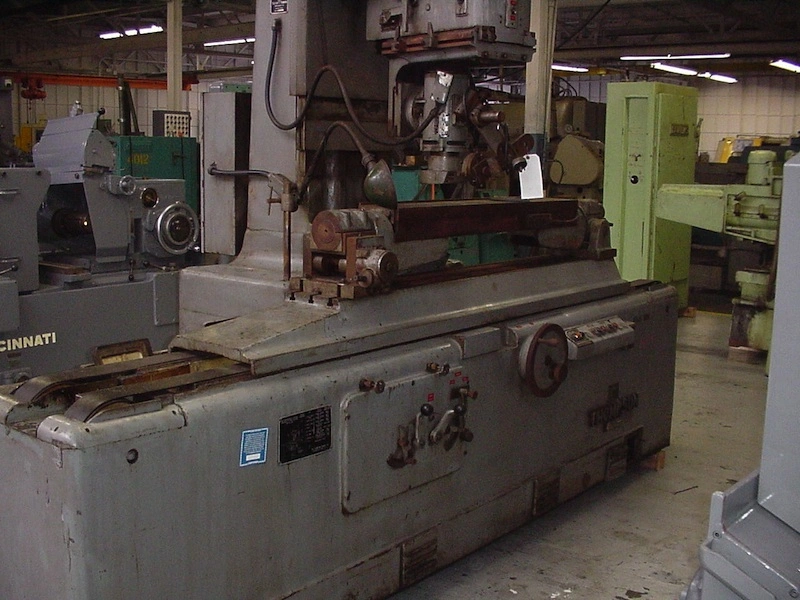

THOMPSON FLAT BROACH GRINDER

THOMPSON FLAT BROACH GRINDER

S/N E-51430

STANDARD SPECIFICATIONS
Table size (with 3 T slots)........................ 9 x 62
Maximum longitudinal feed, hand.................... 48
Hydraulic cross travel of wheel head...............14
Wheel head swivels on horiz. axis............. 60� left or right
Wheel head swivel on vert. axis.................... 90�
Grinding wheel spindle motor. .. . . ............. 1.5 HP
Maximum distance spindle totable.................. 18
Approximate machine weight......................... 9,000 lbs.
Approximate floorspace....................... 66 x 13' x 8' high
(Not counting over travel of table)
Cross travel....................................... 17
Wheel capacity.....................................6 x 1

EQUIPPED WITH
PRIVATE Tilting type electro magnetic chuck................ 6x 48tc�\l 1 Tilting type electro magnetic chuck................ 6\x 48\
Self contained hydraulics and coolant.
Neutrol controls.
Neutrofier.

Specifications are deemed accurate, however, subject to verification or prior sale.
