BLANCHARD 11-20 B39-6-545

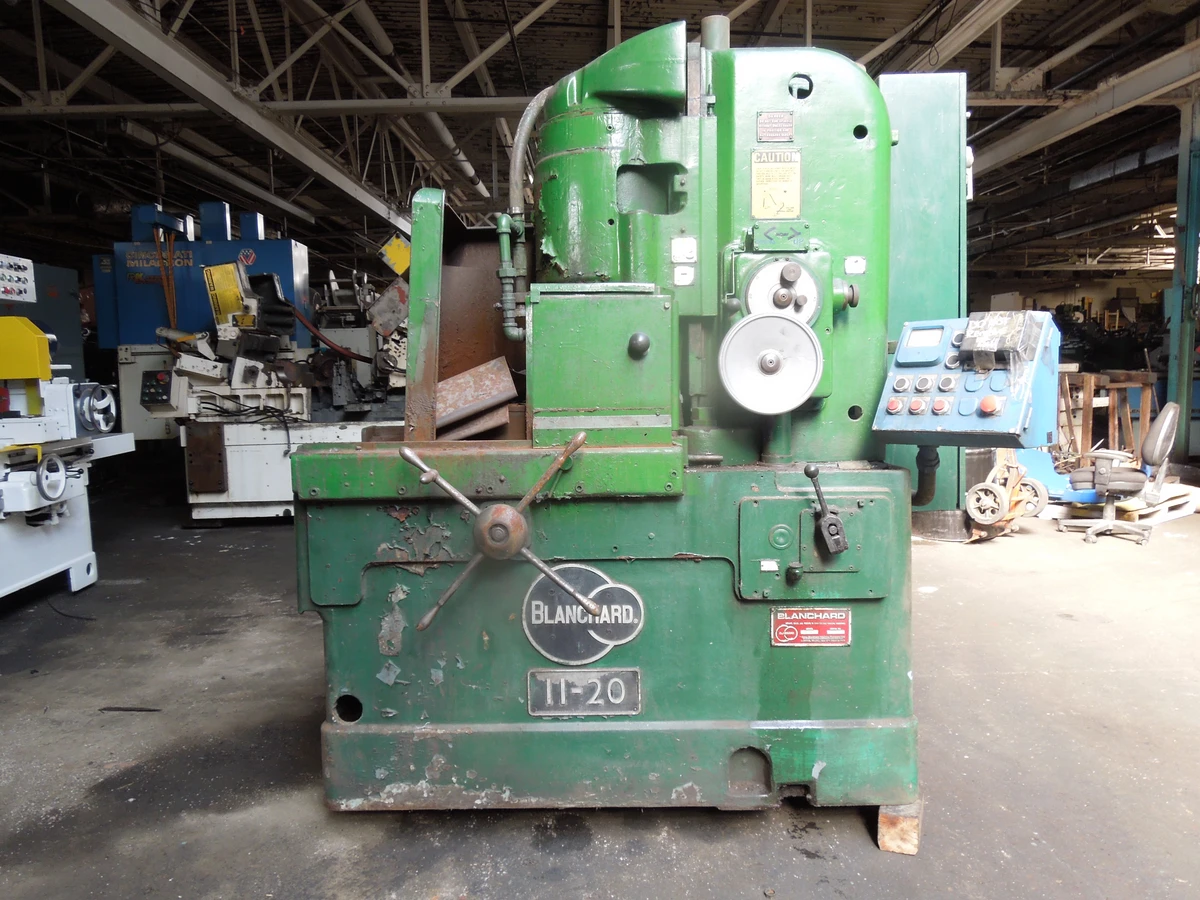

#11-20 BLANCHARD ROTARY SURFACE GRINDER

STANDARD CATALOG SPECIFICATIONS

RANGE
20 Diameter x 7 high over 20 chuck with new cylinder wheel.

WORK TABLE
Blanchard one‑piece steel magnetic chuck, 20 diameter with 1/2 pole spacing, 3/4 center hole, four 3/8 tapped holes for securing stops or fixtures. Chuck uses direct current only, 110 or 220volts, 156 watts required, 1.4 amperes on 110 volts, 0.7 ampere on 220 volts.

NOTE: Where direct current is not available a 500 watt rectifier is ample for one chuck on either voltage.

WHEEL
11 Diameter, 5deep, 1 thick (11x 5 x 9) wire banded cylinder wheel(usable depth 4 1/4).

SPEEDS
Wheel: 1500 R.P.M. on 25 and50 cycle (uses wheel 10 x 4 x 8).
PRIVATE Chuck: Four geared speeds 15,24, 41, and 64 R.P.M. on 60tc� \l 1Chuck\:� Four geared speeds 15, 24,41, and 64 R.P.M. on 60
cycle; 12, 20, 35, and 53 R.P.M. on 25 and 50 cycle.

FEED
Vertical down feed by hand or power, dial graduated in .0005 (dials can be furnished with metric graduations). Power feed variable from.003 to .070 per minute on 60 cycle current (.003 to .058per minute on 50 cycle) with accurate automatic stop. Maximum down feed before stop operates is.048. Wheel head has rapid raise and lower by power, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base, capacity over 75 gallons. Motor driven centrifugal pump submerged in tank, 16 gallons per minute discharge, supplying water inside the wheel and to outside nozzle through 3/4 pipes.

FLOOR SPACE HEIGHT
Length..................................................5'3
Width...................................................3'6
Maximum height.......................................... 6' 8 3/4
Minimum.................................................5'9 1/2
Height of chuck from floor.............................. 36 1/2.

WEIGHT
Grinder with 20 chuck and standard equipment, net...... 5475 lbs.
Export shipping weight.................................. 7000 lbs.

EQUIPMENT FEATURES
20 Magnetic chuck.
15H.P. Spindle motor.
Rapid raising and lowering wheel head.
Attached electrics.
Lubrication.
