Used 1979 BLANCHARD 26HD-48 | GRINDERS, SURFACE, ROTARY TYPE - VERTICAL

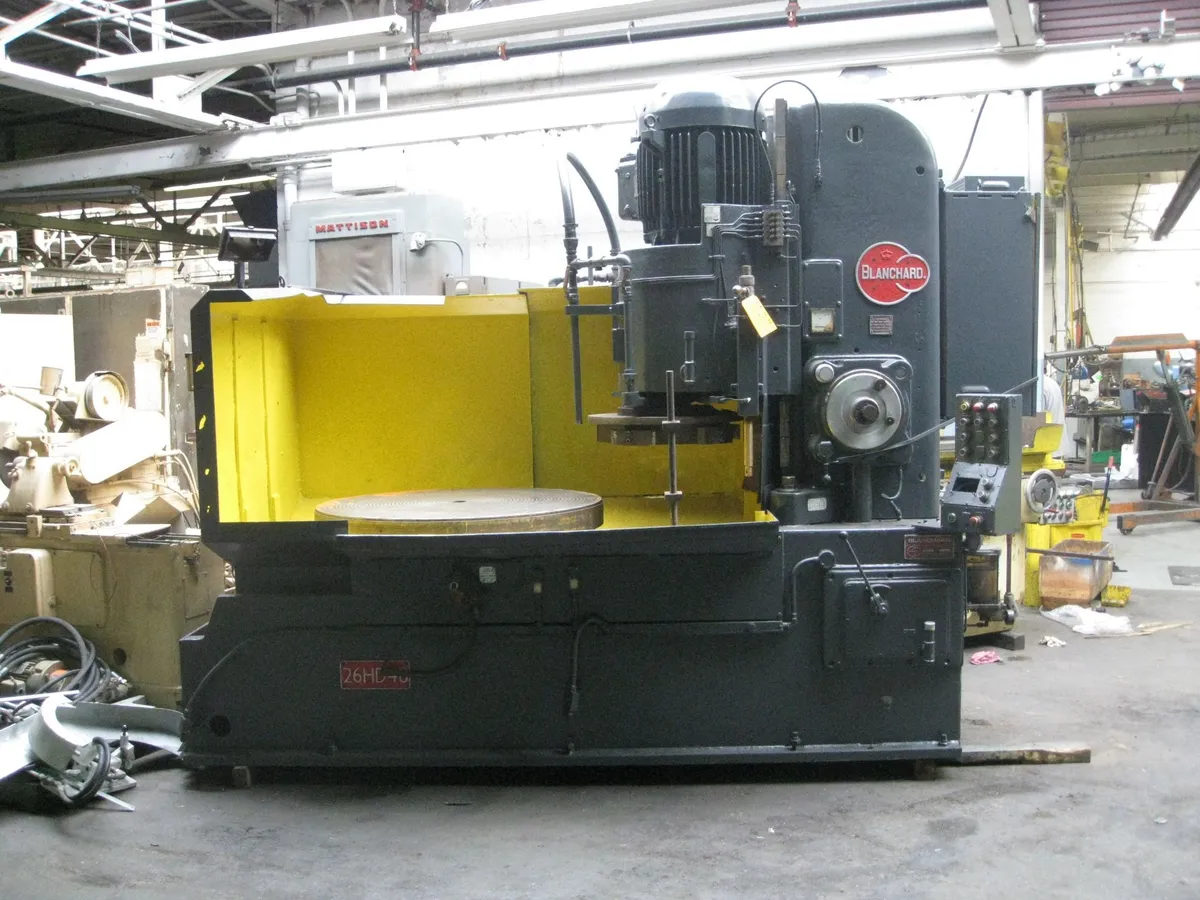

                                    26HD-48 BLANCHARD ROTARY SURFACE GRINDER


                                                       S/N: B30-8-336  Year 1979


STANDARD SPECIFICATIONS

Magnetic chuck diameter………………………………………. 48”
Concentric pole spacing………………………………………... 5/8”
Swing capacity inside water guards...………………………….. 56”
Grind to center diameter……………………………………….. 56”
Maximum unbalanced work load on chuck……………………. 3000 #
Chuck rotation speeds - 60 cycle….…………………………… 6, 9, 12, 18, 15, 33 RM
- 50 cycle….……………………………. 5, 7, 10, 15, 20, 27 RPM
Grinding wheel size…………………………………………….. CTD-26” segment chuck
Number of segments……………………………………………. 5 Bonus grind segments
Grinding wheel speed - 60 cycle……………………………….. 576 RPM
- 50 cycle……………………………….. 560 RPM
Vertical range - standard……………………………………….. 23”
- optional……………………………………….. 35”
Maximum down feed before feed trips………………………… .298”
Power down feed rates - standard……………………………… .004” to .080” IPM
- optional……………………………… .002” to .080” IPM
Motors –
Grinding wheel - standard……………………………………… 75 HP
- optional……………………………………… 100 HP
Chuck rotation…………………………………………………. 5 HP
Head traverse…………………………………………………… 20 # FT
Table traverse…………………………………………………..  20 # FT

STANDARD SPECIFICATIONS

Electrical power requirements - 75 HP……………………………. 95 KVA
- 100 HP..………………………… 125 KVA
Direct current requirements for magnetic chuck………………….. 230 volts
- Supplied by Neutrofier when ordered...…………………………. 1579 Watts
Standard electrical voltages - 3 Phase 60 Cycle………………….. 460 or 575 v.
- 3 Phase 50 Cycle…………………. 380, 415 or 500 v.
Coolant requirements (minimum – outside system)……………… 500 Gallons
Height for removing head without removing gibs –
- Through 24” vertical range……………………………………… 163.0”
- Through 35” vertical range……………………………………… 170.0”
In loading position the 26” segment wheel overlaps –
- The 48” magnetic chuck by………………………………………. 3.2”
- The 56” swing by………………………………………………… 7.2”

EQUIPMENT & FEATURES

Free standing electrical panel
Dresser.
Dry base.
100 HP geared head
23” Vertical range.
Trabon lube.

Specifications are deemed accurate, however, subject to verification or prior sale.
