Used 1958 BLANCHARD 18-36 | GRINDERS, SURFACE, ROTARY TYPE - VERTICAL

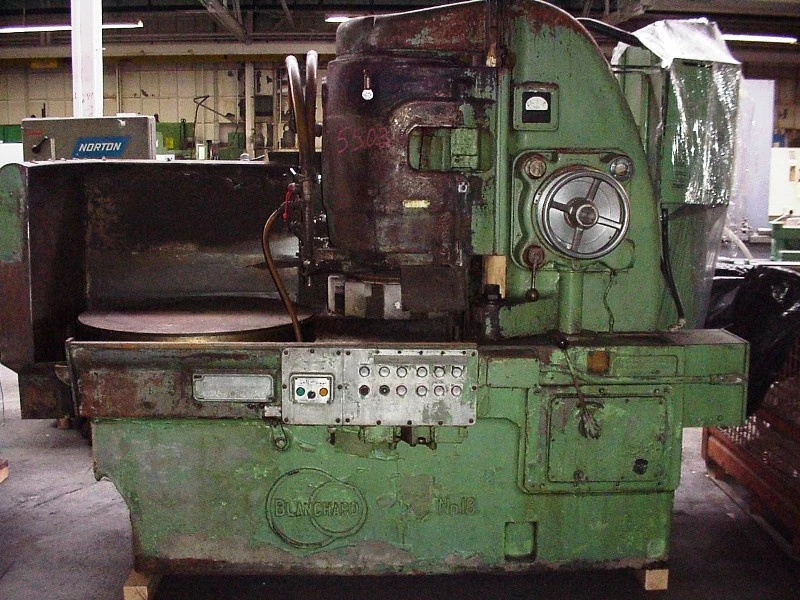

BLANCHARD 18?36 HIGH POWERED VERTICAL ROTARY SURFACE GRINDER
                     S/N 9883    Year: 1958
STANDARD CATALOG SPECIFICATIONS
RANGE
36" diameter x 12" high over 36" chuck with new cylinder wheel ? 11" high with Blanchard segment wheel.
WORKTABLE
Blanchard one?piece steel magnetic chuck, 36" diameter with 5/8" pole spacing.  Chuck has 2" center hole and nineteen 3/8" tapped holes in 36" chuck.  Maximum weight of work load 3,000 lbs.
WHEEL
18" x 5" x 15" cylinder or 18" x 5" x 14" sectored (both wire banded) or 18" Blanchard segment wheel. Wheel head for 20" wheel can be furnished on special order (recommended for grinding to center of work over 32" diameter).  Segmented quoted optional.
SPEEDS
Wheel:  720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck:  6, 9, 12, 18, 25, 33 R.P.M.
        (On 50 cycles chuck speeds are 5/6 of these.)
FEED
Vertical down feed of wheel by hand or power.
Power feed:  On 60 cycles approximately .004" to .080", and on 50 cycles approximately .003" to .066" per minute with accurate
automatic stop.  Maximum distance of down feed before stop operates is one turn of dial, .100".  Wheel head has rapid power
rising and lowering, interlocked with feed.
WATER SUPPLY
Easy cleaning tank in base, capacity 150 gallons.
Motor driven centrifugal pump submerged in tank, 1 1/2" discharge pipe, 60 gallons per minute, supplying water inside the wheel and to outside nozzle through 1" pipes.
CURRENT FOR MAGNETIC CHUCK
36" diameter:  110 volts, D.C.     7.2 amps, 792 watts
               220 volts, D.C.     3.5 amps, 792 watts
FLOOR SPACE & HEIGHT
Length 9'3", width 4'11" including control cabinet.
Maximum height 7'7", minimum 6'9".
Height of chuck from floor 35".
WEIGHT
11,800 lbs.
EQUIPMENT & FEATURES
36" Blanchard one piece steel magnetic chuck.
25 H.P. 220/440  3  60 cycle head motor
Water guards
Wheel dresser
Coolant in base
Segmented wheel chuck
Load monitor
Grinders Clearing House is the largest stocking dealer of
Blanchard grinders.  We have a large assortment of models to
choose from, all in various states.  Rebuilt, recondition, or
cleaned, painted and fully operational.  All our Blanchard’s come
with a full warranty.  G.C.H. is an after market Blanchard parts
supplier as well.  Please don’t hesitate to ask your salesperson
about more details.
Specifications are deemed accurate, however, subject to verification or prior sale.
