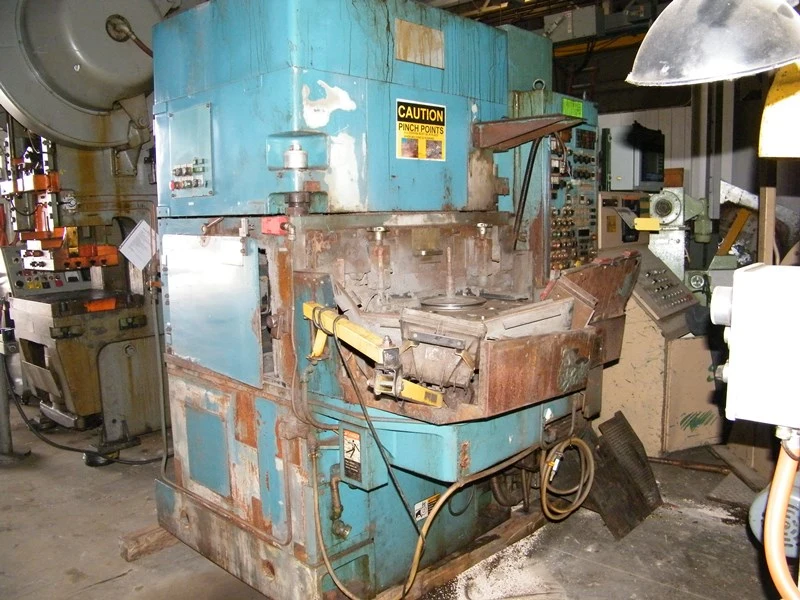

KOYO KVD-580 C CNC VERTICAL DOUBLE DISC GRINDER

KOYO KVD-580C CNC VERTICAL DOUBLE DISC GRINDER
S/N 9404VD5-56YEAR: 1994

STANDARD CATALOG SPECIFICATIONS
Grinding Capacity Outer Diameter...............6”
Grinding Capacity Width........................2”
Grinding Wheel OD x Thickness..................23”x 3”
Wheel Speed....................................900 RPM
Max Distance Between Wheels....................3”
Grinding Wheel Drive(UpperLower)...........25 HP
Wheel Feed Drive...............................100 W-DC Servo Motor
Carrier Drive..................................1 HP
Carrier Disc Diameter..........................28”
Carrier Rotation Speed.........................1-5 RPM
Weight.........................................19,800 lbs.

EQUIPPED WITH
Direct Logic 405 PLC control.
Controls for variable grinding speeds for the top bottom grinding wheels.
Variable speed carrier.
Fine.
Compensation intervals to both wheels.
Dresser arm advance return speeds.
Dresser time compensation amount to both the top bottom grinding wheels.
Rotary carrier.

Specifications are deemed accurate, however, subject to verification or prior sale.
