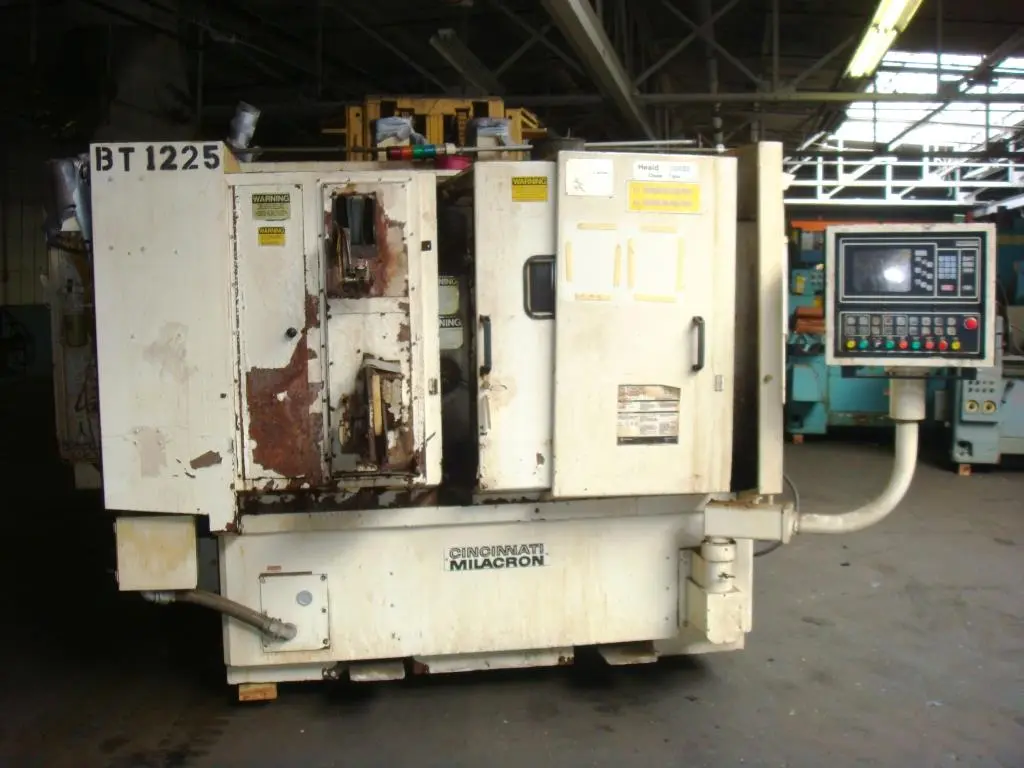

CINCINNATI-MILACRON CINEX3 CNC CENTRI-MATIC EXTERNAL MULTI-SURFACE CHUCKING GRINDER

CINCINNATI-MILACRON CINEX3 CNC CENTRI-MATIC
EXTERNAL MULTI-SURFACE CHUCKING GRINDER

S/N91210DC89-0104Year:1989

STANDARD SPECIFICATIONS
Diameter capacity – normal……………………………………….. 2 to 10
Grinding wheel diameter – maximum…………………………….. 20
Grinding wheel diameter – minimum…………………………….. 16
Wheel slide travel…………………………………………………. 6
Table travel……………………………………………………….. 12
Axis feed resolution………………………………………………. .0000125
Work head speeds – range………………………………………… 20 to 2000 RPM
Grinding wheel motor…………………………………………….. 20 HP
Floor space required – L x W……………………………………... 9’ 1x 12’4
Overall height……………………………………………………… 8’ 6
Weight – approximately…………………………………………… 22,000 lbs.

EQUIPPED WITH
Acramatic #700 CNC controls.
Head stock with chuck for automotive part.
Automatic two-arm loader for automotive part.
Automatic CNC slide compensation after wheel dress.
Automatic clipper behind wheel rotary diamond dresser.
Granite epoxy composite formed machine base for thermal stability/vibration dampening.
Hydraulic pump and tank.
Full guard enclosure.
N-Base configuration.

Specifications are deemed accurate, however, subject to verification or prior sale.
