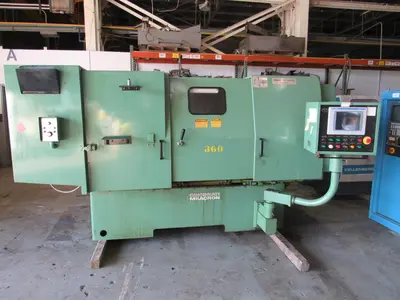

HEALD #2 CINTERNAL 912027U87-0121

2EF 700G CINCINNATI MILACRON/HEALDCINTERNAL CNC
MULTI-SURFACE INTERNAL GRINDER
S/N 912027U87-0121 Year:1987

STANDARD SPECIFICATIONS
Work head capacity………………………………………. 1,000 lbs.
Swing over table – maximum…………………………….. 24
Swing with work head @ 90 degrees…………………….. 17
Grinding stroke – maximum……………………………… 16
Table longitudinal travel..………………………………… 12
Wheel head cross slide travel…………………………….. 6
Work head cross slide travel..…………………………….. 16
Work head swivel angle – maximum…………………….. 0 – 90 degrees
Work head spindle speeds – reversible…………………… 30 to 999 RPM
Feed rate – infinite range………………………………..… .001 to 999 IPM
Work head spindle motor………………………………..… 10 HP
Work head chuck motor…………………………………… 4.5 HP

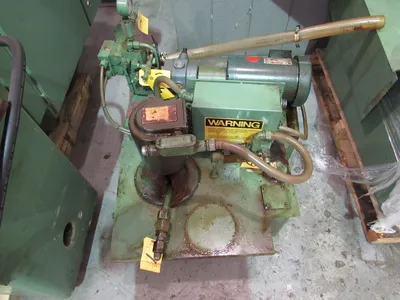

Hydraulic motor – HP/RPM……………………………..…1/3 HP
Overall dimensions – W x D………………………………. 65 high x 173 x 113
Weight – approximately…………………………………… 12,000 lbs.
EQUIPPED WITH
Cross sliding table.
24 Swing.
Ball screws / DC Drives.

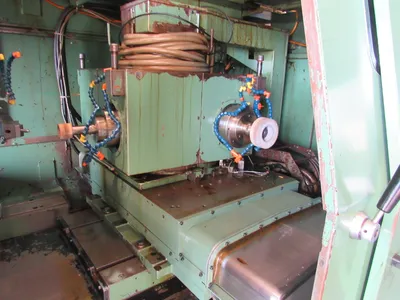

4 Spindle turret.
(2) 17,000 RPM
(2) 33,000 RPM

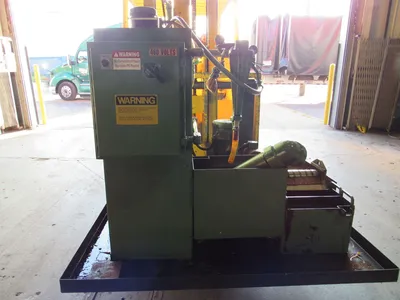

Coolant tank pump.

Specifications are deemed accurate, however, subject to verification or prior sale.
