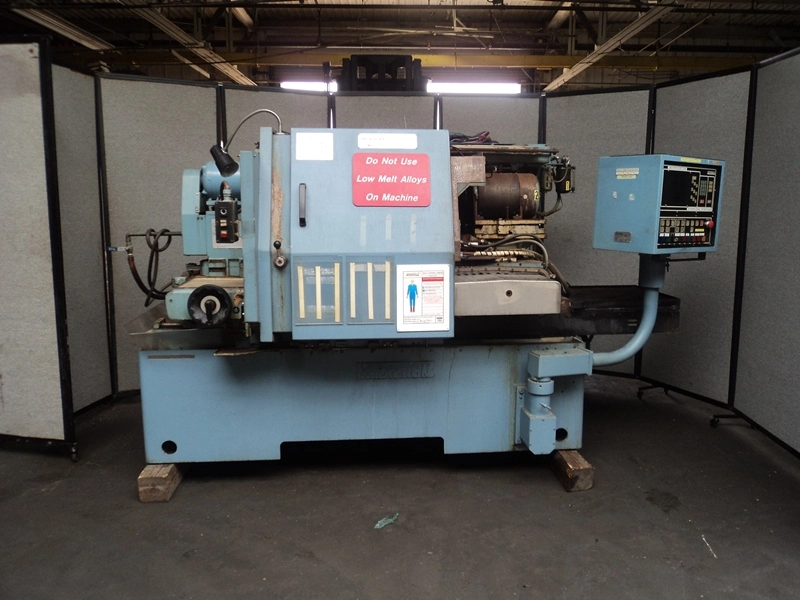

2EF 700G CINCINNATI MILACRON/HEALD CINTERNAL CNC MULTI-SURFACE INTERNAL GRINDER

2EF 700G CINCINNATI MILACRON/HEALD CINTERNAL CNC
MULTI-SURFACE INTERNAL GRINDER

S/N 912027U84-0169 Year:1984

STANDARD SPECIFICATIONS
Work head capacity………………………………………. 1,000 lbs.
Swing over table – maximum…………………………….. 30
Swing with work head @ 90 degrees…………………….. 17
Grinding stroke – maximum……………………………… 16
Table longitudinal travel..………………………………… 12
Wheel head cross slide travel…………………………….. 9
Work head cross slide travel..…………………………….. 16
Work head swivel angle – maximum…………………….. 0 – 90 degrees
Work head spindle speeds – reversible…………………… 30 to 999 RPM
Feed rate – infinite range………………………………..… .001 to 999 IPM
Work head spindle motor………………………………..… 10 HP
Work head chuck motor…………………………………… 4.5 HP
Hydraulic motor – HP/RPM……………………………..…1/3 HP
Overall dimensions – W x D………………………………. 65 high x 173 x 113
Weight – approximately…………………………………… 12,000 lbs.

EQUIPPED WITH

Cross sliding table.
Single point dresser..
30 Swing.
Coolant pump tank w/ paper filtration.
Stand alone electrical panel.
20” T-Slotted face plate.
Extended cross feed.

Specifications are deemed accurate, however, subject to verification or prior sale.
