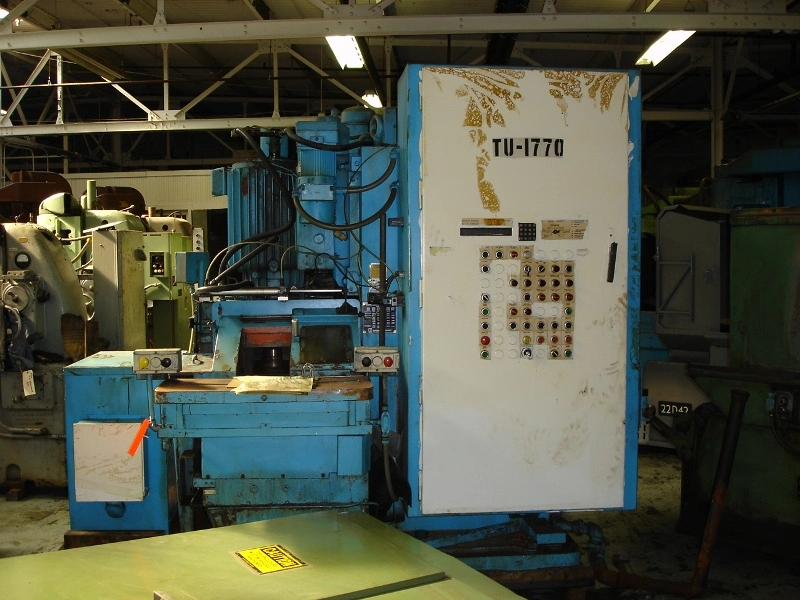

MODEL GVS1-23 GARDNER VERTICAL SINGLE SPINDLE DISC GRINDER

MODEL GVS1-23 GARDNER VERTICAL SINGLE
SPINDLE DISC GRINDER
S/N 912-07 Year: 2000

High productivity combined with exceptionally high dimensional and surface finish quality is made possible by the Gardner GSV1-23 Disc Grinder, tooled with a special rotary type work holding device mounted on a reciprocating fixture. This disc grinding machine offers superb rigidity from a massive column surrounding the wheel head. A 20 HP motor drives the spindle, supported by a rigid wheel head assembly, with a unique wheel feed system that resists heavy thrust loads.

EQUIPMENT DATA
One (1) 23 diameter x 3 thick Gardner abrasive.
Special reciprocating fixture with rotating work holder station.
Wet grinding system for connection to central coolant system.
Automatic grease lubrication system.
Servo driven ball screw feed system enabling programming of ultra-find feed increments.
Giddings Lewis programmable industrial computer(P.I.C.) Model No. 409.
Power operated bar-type dresser with automatic dress cycle.
Water cooled spindle.
Face cut.
Manual and auto cycle.
Spark out.

Machine currently set up to grind motor and pump bearings.

Specifications are deemed accurate, however, subject to verification or prior sale.
