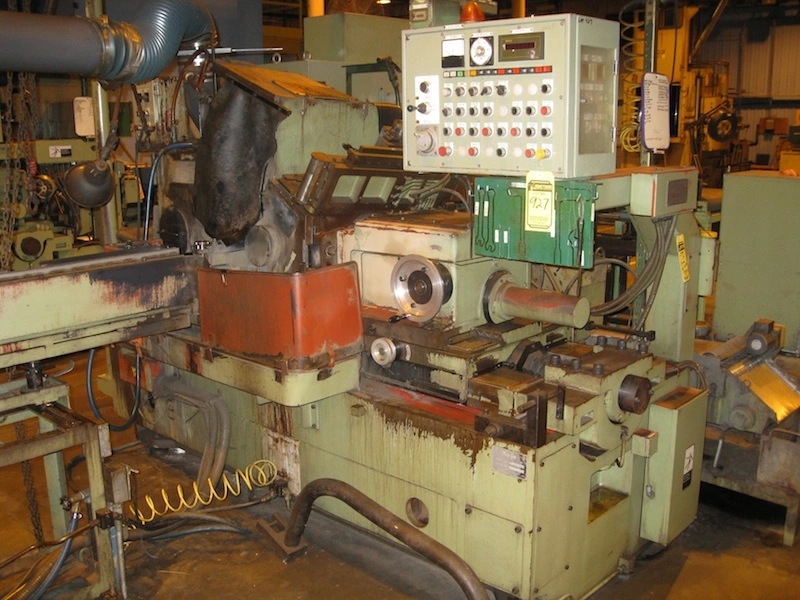

Koyo KC-200 Centerless Grinder
KOYO MODEL KC-200 CENTERLESS GRINDER
S/N 9001-266
STANDARD SPECIFICATIONS
Grinding Capacity
Outer diameter (O.D.)…………………………………………. 0.06 – 4.72
In feed work length……………………………………………. 11.8
Grinding Wheel
O.D. x width x bore diameter…………………………………. 24 x 8 x 12
Min. O.D………………………………………………………. 18.5
Height (spindle center to floor)………………………………… 43
Regulating Wheel
O.D. x width x bore diameter………………………………….. 13 x 8 x 8
Min. O.D………………………………………………………. 11
Tilt adjustment………………………………………………… 5
Grinding Speed
Grinding wheel RPM………………………………………….. 1,040 RPM
Peripheral speed – max………………………………………… 3,280 m/min.
Regulating wheel RPM………………………………………… 50 – 400 RPM
Regulating wheel speed change inverter
Motors
Grinding wheel…………………………………………….. 15 kW-4P 20 HP
Regulating wheel…………………………………………… 1.5 kW-6P
Floor space………………………………………………….. 97 x 78
Machine weight……………………………………………. 13,000 lbs.
EQUIPPED WITH
Wheel dressers.
Thru feed work rest.
Coolant system with filtration
Automatic size compensator (upper slide).
Fine size compensator (lower slide).
A/B PLC 2/16 Controls.
Omron power supply.
Specifications are deemed accurate, however, subject to verification or prior sale.
