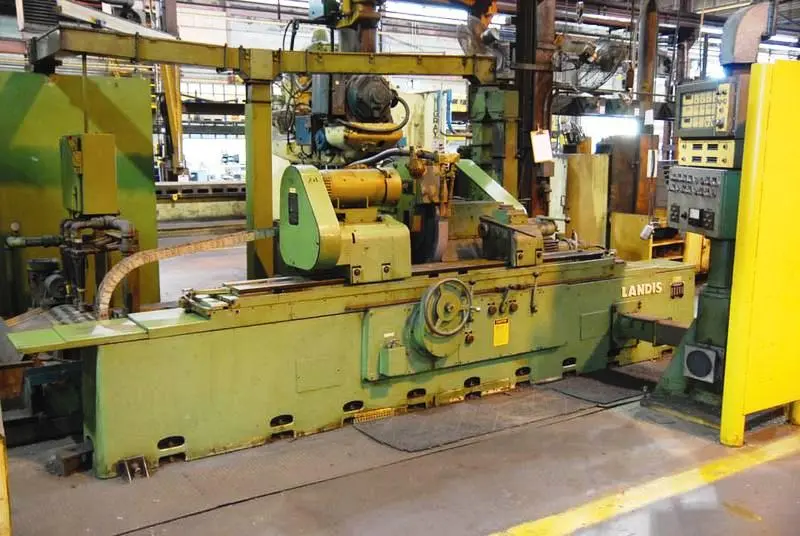

14 x 72 LANDIS MODEL #4R CYLINDRICAL GRINDER

14 x 72 LANDIS MODEL #4R CYLINDRICAL GRINDER
S/N 878-04 Year: 1981

STANDARD CATALOG SPECIFICATIONS
Nominal work swings............................. 14
Maximum work swing over table................... 14 31/32
Nominal distances between work centers.......... 72
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on straight wheel head machine with hydraulic in feed stroke as noted.................. 10-3 /12 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on straight wheelhead machine with hydraulic infeed stroke as noted ................. 10-3/12\ H.I.
Minimum diameter wheel to grind zero diameter work on
centers on straight wheel head machines......... 20
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic stroke as noted......................... 10-4 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on angle wheel headmachine with hydraulic stroke as noted .. . . . . . . . . . . . 10\-4\H.I.
Minimum diameter wheel to grind zero diameter work on
centers on angle wheel head machines............ 21-3/4
Coolant tank capacity........................... 55 gallons
Hydraulic tank capacity......................... 22.5 gallons

WORK CARRIAGE
Traverse speed (in/min) all
Lengths thru 72................................ 2 to 240
96 Thru 120 lengths........................... 2 to 144
Traverse speed per turn off
Hand wheel:
Slow............................................0.100
Fast............................................0.750-72

WHEEL HEAD AND WHEEL FEED
Grinding wheel size – standard................... 30 x 4 x 12
Grinding wheel - maximum width................... 4
Grinding wheel spindle speeds.................... 800/964 RPM
Grinding wheel minimum diameter worn wheel....... 20
Hydraulic rapid in feed - straight
Wheel head machine: Maximum standard............. 3 1/2
Minimum standard............. 15/8
Hydraulic rapid in feed - Angle
Wheel head machine: Maximum standard............. 4 1/4
Minimum standard............. 23/8

EQUIPPED WITH
Tail stock dresser.
Plunge feed.
Tarry left right.
Traverse incremental feed.
Freestanding electrical panel.
Dead center head stock.
Bijur lube.
Tru-form behind the wheel dresser.
20 HP grinding wheel spindle motor.
#14 Jarno on head tail stock.
Standalone electrical unit.
