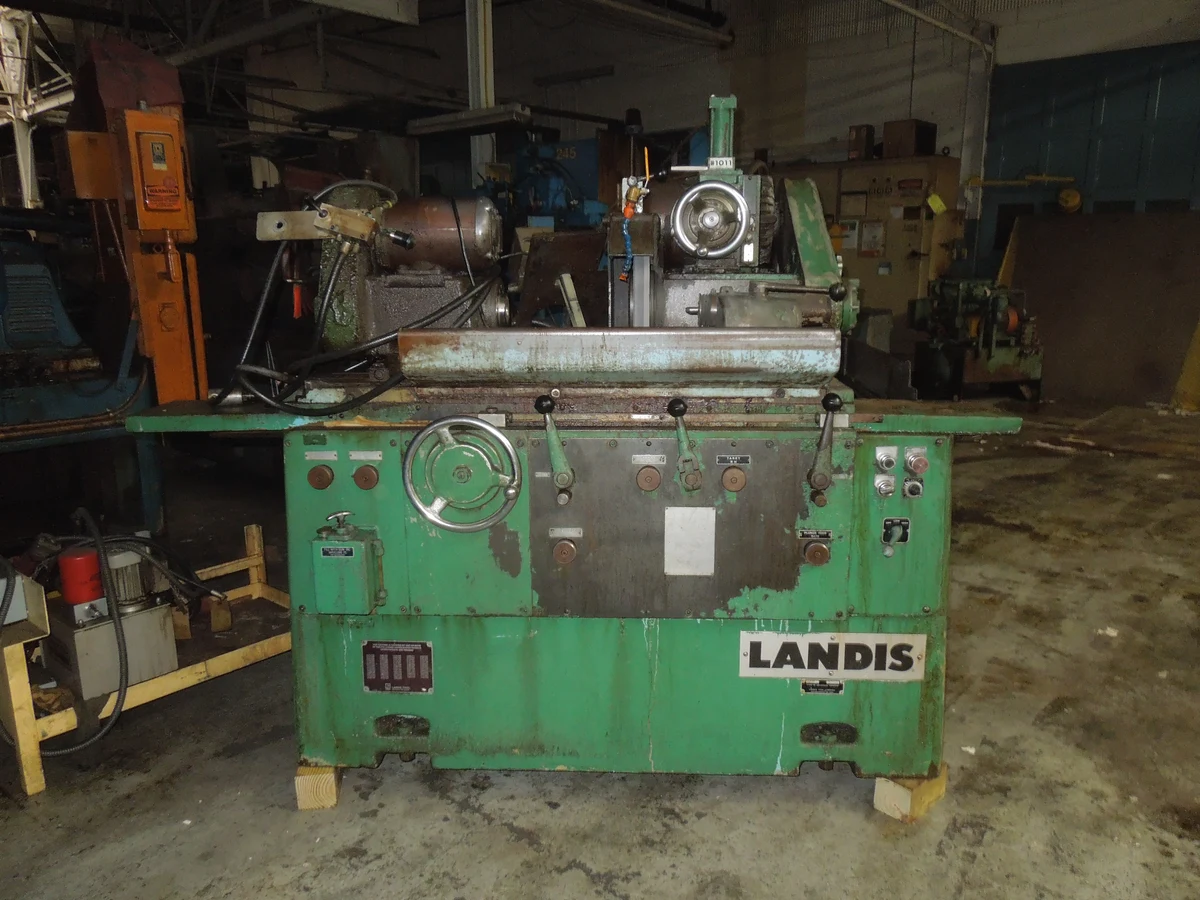

10 x 20 1R LANDIS CYLINDRICAL UNIVERSAL GRINDER

10 x 20 1R LANDIS CYLINDRICAL UNIVERSAL GRINDER
S/N 873-31Year: 1979

STANDARD CATALOG SPECIFICATIONS
Nominal work swing......................................... 10
Nominal distance between work centers.............. 20
PRIVATE Maximum diameter work standard machine will grind with full size standard wheel.................................... 10 7/8tc� \l 1 Maximum diameter work standardmachine will grind with full size standard wheel........... . . . . . . . . . .. . . 10 7/8\
PRIVATE Minimum diameter wheel to grind zero diameter work on centers........................................... 10 1/2tc� \l 1 Minimum diameter wheel to grindzero diameter work on centers........................... . . . . . . . .� 10 1/2\
Floor space required............................... 106 x 50
Coolant tank capacity in gallons................... 19
Hydraulic tank capacity in gallons................. 9 1/4
Height from floor to work center line............... 41 3/4

WORK CARRIAGE
Traverse Speed, inches per minute.................. 2 ‑ 240
Carriage traverse per turn of hand wheel........... 0.200
Swivel Graduated, inches per foot.................. 4
Degrees included angle............................. 20 Degrees
Work rest capacity................................. 1/4 to 4

HEAD STOCK FOOT STOCK
Head stock work center............................. #10 Jarno
Foot stock work center............................. # 6 Jarno
Head stock swivel range............................ 120 Degrees
Work speeds, RPM.................... 60, 90, 150, 225, 400, 600
Diameter hole thru spindle......................... 1
Head stock spindle nose............................ 5A2

WHEEL HEAD WHEEL FEED
Grinding wheel size...............................14 x 1.5 x 5
Minimum diameter of worn wheel..................... 7 1/2
Maximum distance wheel center line to work center line for machines w/hydraulic in feed.................................12 1/2
PRIVATE Minimum distance wheel center line to work center line with foot stock removed..................................... 3 1/2tc� \l 1 Minimum distance wheel centerlineto work centerline with foot stock removed.................. . . . . . .� . . . . 3 1/2\
Work diameter reduction per revolution of
hand wheel......................................... .100
Per revolution of fine feed knob................... 0.001
Minimum feed graduations on diameter............... 0.000050
Maximum hydraulic in feed on diameter
For machines with hydraulic in feed................. 0.090
Rapid in feed stroke................................ 1
Grinding wheel head swivel range.............. 90 Degrees each way

ELECTRIC MOTORS
Wheel drive motor.................................. 3 HP
Work drive motor................................... 1/4 HP
Wheel spindle lubrication motor.................... 1/4 HP
Coolant pump motor................................. 1/10 HP
Hydraulic pump motor for machines w/hydraulic.

EQUIPPED WITH
L.H. R.H. Tarry.
Auto plunge.
Swivel head stock.
Hydraulic table travel.
Traverse feed.
Tail stock dresser.
Spark out timer.
