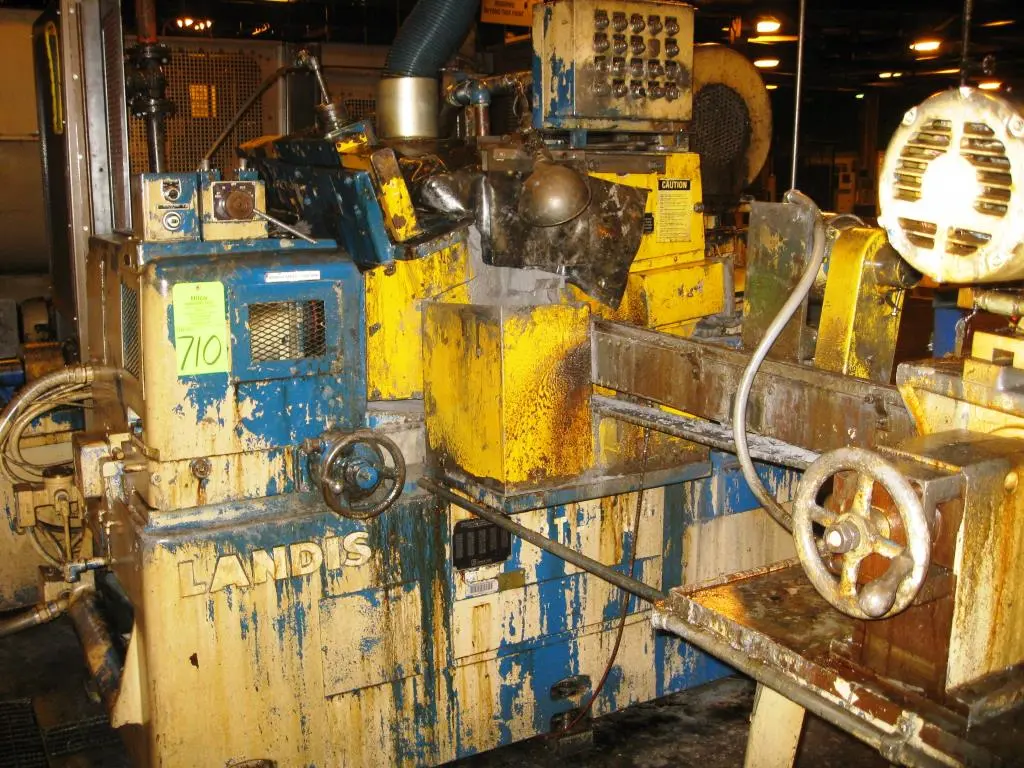

14 R LANDIS CENTERLESS GRINDER

14 R LANDIS CENTERLESS GRINDER
S/N 863-56 Year: 1976

STANDARD SPECIFICATIONS

WORK CAPACITY (DIAMETER)
Regular thru feed and in feed work rests................ 1/2 to 4
Heavy duty thru feed and in feed work rests............. 2 to 6
Bar grinding work rests................................ 8 max.

WHEELS
Grinding wheel,12 hole...................... 1 to 14 widths
..........................................................20 max. dia.
..........................................................14min. dia.
Regulating wheel,5 hole..................... 1 to 14 widths
..........................................................14 max. dia.
..........................................................9 min. dia.

MOTORS
Grinding wheel drive motor, totally enclosed...... 20 HP, 1800 RPM
(40 HP available)
Regulating wheel drive motor, totally enclosed..... 2 HP, 1800 RPM
Wheel spindle lubrication pump motor, totally enclosed.............................. . . . . 1/4 HP, 1800 RPM
Coolant pump motor, totally enclosed.......... 1/3 HP, 1800 RPM
Hydraulic oil pump motor, totally enclosed, for machine with hydraulic grinding wheel feed................. 3/4 HP, 1800 RPM

REGULATING WHEEL HEAD
Maximum angle of tilt for thru feed grinding............ 7
Maximum swivel for taper grinding (including angle...... 7
Maximum angle of reverse tilt for thru feed grinding
from rear to front...................................... 5
Spindle speeds when grinding....................... 10 to 72 RPM
Spindle speed for dressing......................... 300 RPM

HYDRAULIC GRINDING WHEEL FEED
Hydraulic rapid in feed............................. 1/16 to 1
Hydraulic grinding feed............................ 0.090

COOLANT
Reservoir capacity.................................100 gallons
Pump capacity......................................30 GPM

MACHINE WEIGHTS
Net weight including electrical equipment.......... 14,500 lbs.

ADDITIONAL FEATURES
Hydraulic truing on both sides
Setup as thru feed grinder
Freestanding panel
From Service
Push button control station
