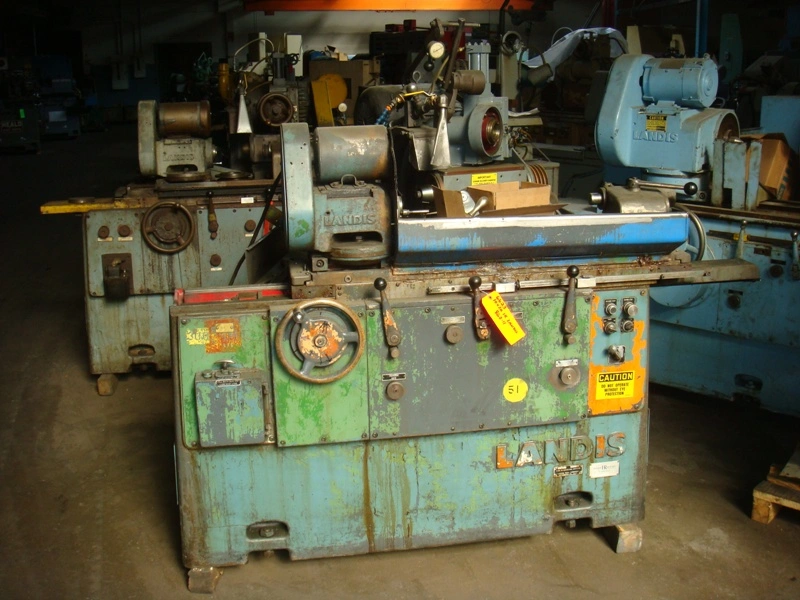

10 x 20 1R LANDIS UNIVERSAL CYLINDRICAL GRINDER

10 x 20 1R LANDIS UNIVERSAL CYLINDRICAL GRINDER

S/N 862-11Year: 1976

STANDARD CATALOG SPECIFICATIONS
Nominal work swing................................. 10
Nominal distance between work centers.............. 20
PRIVATE Maximum diameter work standard machine will grind with full size standard wheel.................................... 10 7/8tc� \l 1 Maximum diameter work standardmachine will grind with full size standard wheel........... . . . . . . . . . .. . . 10 7/8\
PRIVATE Minimum diameter wheel to grind zero diameter work on centers........................................... 10 1/2tc� \l 1 Minimum diameter wheel to grindzero diameter work on centers........................... . . . . . . . .� 10 1/2\
Floor space required............................... 106 x 50
Coolant tank capacity in gallons................... 19
Hydraulic tank capacity in gallons................. 9 1/4
Height from floor to work center line............... 41 3/4

WORK CARRIAGE
Traverse speed, inches per minute.................. 2 - 240
Carriage traverse per turn of hand wheel........... 0.200
Swivel graduated, inches per foot.................. 4
Degrees included angle............................. 20 degrees
Work rest capacity................................. 1/4 to 4

HEAD STOCK FOOT STOCK
Head stock work center............................. #10 Jarno
Foot stock work center............................. # 6 Jarno
Head stock swivel range............................ 120 degrees
Work speeds, RPM.................... 60, 90, 150, 225, 400, 600
Diameter hole thru spindle......................... 1
Head stock spindle nose............................ 5A2

WHEEL HEAD WHEEL FEED
Grinding wheel size........................... 18 x 3 x 5
Minimum diameter of worn wheel................ 7 1/2
PRIVATE Maximum distance wheel center line to work center line for machines w/hydraulic in feed........................... 12 1/2tc� \l 1 Maximum distance wheel centerlineto work centerline for machines w/hydraulic infeed......... . . . . . . . . . .. . 12 1/2\
PRIVATE Minimum distance wheel center line to work center line with foot stock removed................................ 3 1/2tc� \l 1 Minimum distance wheel centerlineto work centerline with foot stock removed.................. . . . . . . . . .. 3 1/2\
PRIVATE Work diameter reduction per revolution of hand wheel.........................................100tc�\l 1 Work diameter reduction per revolution of handwheel.......................................... . . .100\
Per revolution of fine feed knob.............. 0.001
Minimum feed graduations on diameter.......... 0.000050
PRIVATE Maximum hydraulic in feed on diameter for machines with hydraulic in feed....................................... 0.090tc� \l 1 Maximum hydraulic infeed ondiameter for machines with hydraulic infeed................. . . . . . . . . .. . . . . 0.090\
Rapid in feed stroke........................... 1
Grinding wheel head swivel range.............. 90 degrees each way

ELECTRIC MOTORS
Wheel drive motor............................. 3 HP
Work drive motor.............................. 1/4 HP
Wheel spindle lubrication motor............... 1/4 HP
Coolant pump motor............................ 1/10 HP
PRIVATE Hydraulic pump motor for machines w/hydraulic traverse and/or hydraulic in feed............................. 1 HPtc� \l 1 Hydraulic pump motor for machinesw/hydraulic traverse and/or hydraulic infeed................. . . . . . . . . .1 HP
Internal grinding spindle motor............... 1 HP

EQUIPMENT FEATURES
Plunge.
Tarry.
Hyd. table travel.
Swivel work head.
Coolant.

If this machine for some reason does not fit your needs, ask your salesman about other 1R or 2R Landis Grinders we have in stock.

Specifications are deemed accurate, however, subject to verification or prior sale.
