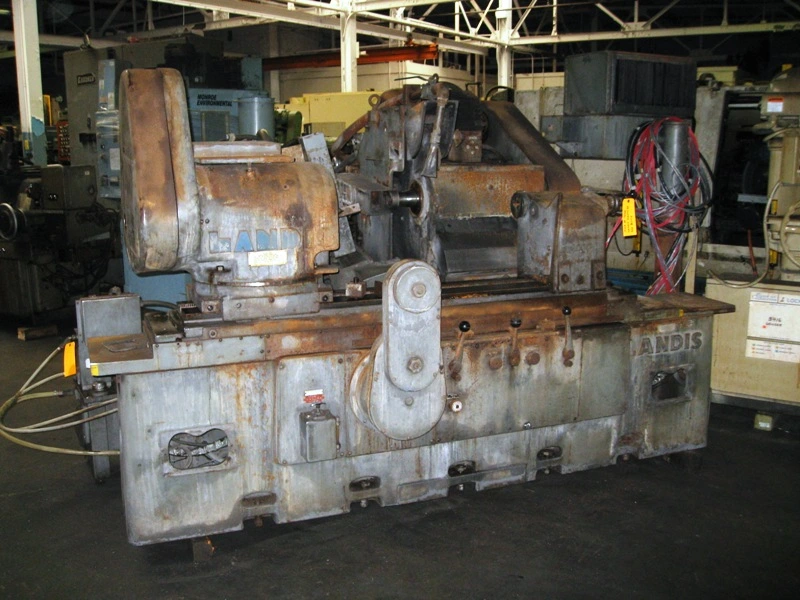

24 x 36 LANDIS MODEL #4R PLAIN CYLINDRICAL GRINDER

24 x 36 LANDIS MODEL #4R PLAIN CYLINDRICAL GRINDER

S/N 861-75 Year: 1974

STANDARD CATALOG SPECIFICATIONS
Nominal work swings............................. 24
Maximum work swing over table................... 24”
Nominal distances between work centers.......... 36
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on straight wheel head machine with hydraulic in feed stroke as noted................ 24
Minimum diameter wheel to grind zero diameter work on
centers on straight wheel head machines......... 20
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic stroke as noted......................... 10-4 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on angle wheel headmachine with hydraulic stroke as noted .. . . . . . . . . . . . 10\-4\H.I.
Minimum diameter wheel to grind zero diameter work on
centers on angle wheel head machines............ 21-3/4
Coolant tank capacity........................... 55 gallons
Hydraulic tank capacity......................... 22.5 gallons

WORK CARRIAGE
Traverse speed (in/min) all
Lengths thru 36................................ 2 to 240
Traverse speed per turn off
Hand wheel:
Slow............................................0.100
Fast............................................0.750-72

WHEEL HEAD AND WHEEL FEED
Grinding wheel size – standard..................... 30 x 4 x 12
Grinding wheel - maximum width................... 4
Grinding wheel spindle speeds.................... 800/964 RPM
Grinding wheel minimum diameter worn wheel....... 20
Hydraulic rapid in feed - straight
Wheel head machine: Maximum standard............. 3 1/2
Minimum standard............. 15/8
Hydraulic rapid in feed - Angle
Wheel head machine: Maximum standard............. 4 1/4
Minimum standard............. 23/8

EQUIPPED WITH
Tail stock dresser.
Plunge feed w/timer.
Tarry left right.
Traverse incremental feed.
Freestanding electrical panel.
Live dead center head stock.
Load meter.
8A2 spindle nose on head stock.
#20 Jarno on head stock.
#14 Jarno on tail stock.
Weight capacity of 500 lbs. between centers.
Specifications are deemed accurate, however, subject to verification or prior sale.

All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
