Used LANDIS 4R | GRINDERS, CYLINDRICAL - PLAIN

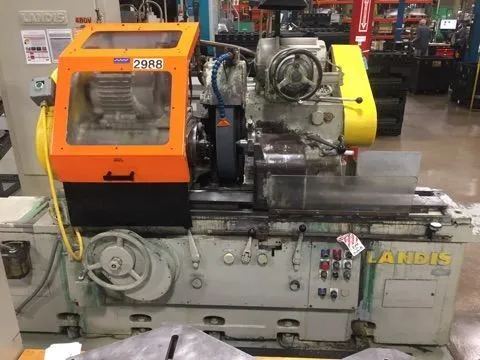

                                                               18 x 36 LANDIS MODEL #4R CYLINDRICAL GRINDER

                                                                                                 S/N 844-27

STANDARD CATALOG SPECIFICATIONS
Nominal work swings............................. 18"
Maximum work swing over table................... 18 31/32"
Nominal distances between work centers.......... 36"
Maximum work swing and diameter standard machine will grind with full size standard wheel on straight wheel head machine with hydraulic infeed stroke as noted.................. 10 3 /12" H.I.
Minimum diameter wheel to grind zero diameter work on
centers on straight wheel head machines......... 20"
Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic stroke as noted......................... 10" 4" H.I.
Minimum diameter wheel to grind zero diameter work on
centers on angle wheel head machines............ 21 3/4"
Coolant tank capacity........................... 55 gallons
Hydraulic tank capacity......................... 22.5 gallons

WORK CARRIAGE
Traverse speed (in/min) all
Lengths thru 36"................................ 2 to 240
96" Thru 120" lengths........................... 2 to 144
Traverse speed per turn off
Hand wheel:
Slow............................................ 0.100"
Fast............................................ 0.750" 72"

WHEELHEAD AND WHEELFEED
Grinding wheel size – standard..................... 30" x 3" x 12"
Grinding wheel   maximum width................... 4"
Grinding wheel spindle speeds.................... 800/964 RPM
Grinding wheel minimum diameter worn wheel....... 20"
Hydraulic rapid infeed   straight
Wheel head machine: Maximum standard............. 3 1/2"
                    Minimum standard............. 1 5/8"
Hydraulic rapid infeed   Angle
Wheel head machine: Maximum standard............. 4 1/4"
                    Minimum standard............. 2 3/8

EQUIPPED WITH
Tail stock dresser.
Plunge feed.
Tarry left & right.
Traverse incremental feed.
Free standing electrical panel.
Behind the wheel grinding wheel dresser.
Dead center head stock.
15 H.P. Spindle motor.
Coolant in base.
30” x 3” x 12” Grinding wheel.
6300 SFPM.

Specifications are deemed accurate, however, subject to verification or prior sale.
