LANDIS 14x36 2R UNIVERSAL 833-86

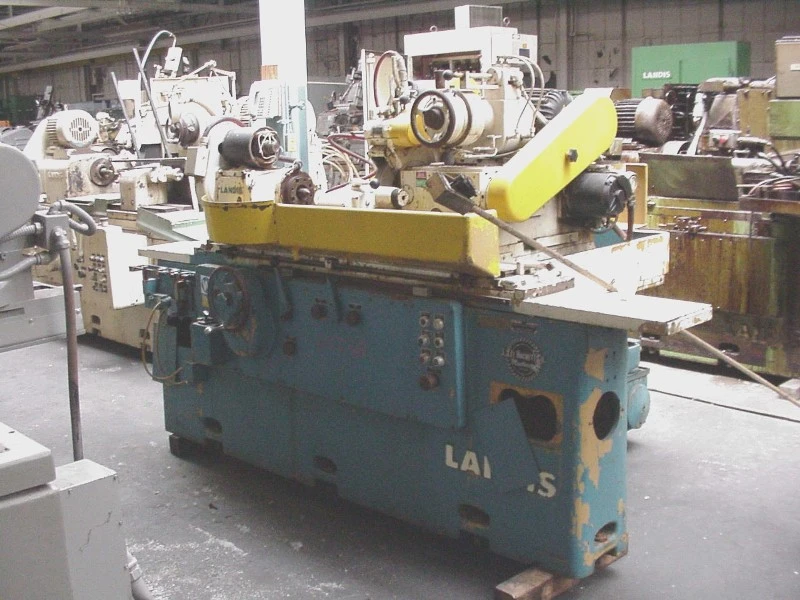

14 x 36 2R LANDIS UNIVERSAL CYLINDRICAL GRINDER

S/N 833-86Year: 1967

STANDARD CATALOG SPECIFICATIONS
Nominal work swings................................ 14
Nominal distances between work centers............. 36
PRIVATE Maximum work swing diameter standard machine will grind with full size standard wheel.......................... 14 31/32tc� \l 1 Maximum work swing diameterstandard machine will grind with full size standard wheel........... . . . . .. . . 14 31/32\
PRIVATE Minimum diameter wheel to grind zero diameter work on centers........................................... 9 Degreestc� \l 1 Minimum diameter wheel to grindzero diameter work on centers.................................... . . . . 9Degrees
Coolant tank capacity, gallons..................... 28
Hydraulic tank capacity, gallons................... 25 1/2
Height from floor to work centerline............... 42

WORK CARRIAGE
Traverse speed, inches per minute.................. 2 to 240
Traverse per turn of hand wheel ‑slow............. 0.100
‑fast............. 1.000
Center rest capacity............................... 1/4 ‑ 2
Work rest capacity................................. 1/4 ‑ 4

WHEEL HEAD WHEEL FEED
Grinding wheel size................................ 14 x 2 x 5
Grinding wheel head swivel range‑ upper........... 180 Deg.
-lower........... 60 Deg. CW
30 Deg. CCW
Grinding wheel spindle speeds, RPM................. 2005‑2533
PRIVATE Automatic infeed at table reversal on dia.... 0.0002to 0.004
Maximum distance wheel centerline to work
centerline.......................................10 ‑ 15 1/2
Minimum distance wheel centerline to work
centerline.......................................1 1/2
Work diameter reduction per revolution of
handwheel....................................... 0.100
PRIVATE Work diameter reduction per revolution of fine feed knob (Hydraulic Infeed Machines)..................... 0.001tc� \l 1 Work diameter reduction perrevolution of fine feed knob (Hydraulic Infeed Machines)....... . . . . . ..� 0.001\
PRIVATE Maximum hydraulic feed on diameter for hydraulic infeed machines........................................ 0.090tc� \l 1 Maximum hydraulic feed on diameterfor hydraulic infeed machines........................ . . . . . . . .0.090\
Internal spindle speed, RPM......................To be determined

HEAD STOCK FOOT STOCK
Head stock work center........................... #10 Jarno
Foot stock work center........................... # 6 Jarno
Foot stock center movement by.................... Lever only
Work speeds RPM ‑ Low Range......................30 to 150
‑ High Range.....................120 to 600
Diameter hole through head stock spindle......... 1
Head stock swivel range.......................... 120 Degrees
Head stock spindle nose.......................... 5A‑2

LENGTHS BETWEEN CENTERS ‑ 36
Swivel table graduated, inches per foot.......... 4 1/2
Swivel table graduated, degrees included angle... 20 Deg.

ELECTRIC MOTORS
Wheel drive motor................................ 3 HP
Work drive motor................................. 1/3 HP
Hydraulic oil pump generator drive motor....... 1/4 HP
Internal fixture motor........................... 1 HP
Wheel spindle lubrication pump motor............. 1/4 HP
EQUIPMENT FEATURES
Hydraulic table travel.
Micro feed.
Pick feed.
Tarry.
Tail stock dresser.
L.R. tarry.
Rapid advance.
Swing down I.D. attachment.
14 G.W.

Specifications are deemed accurate, however, subject to verification or prior sale.
