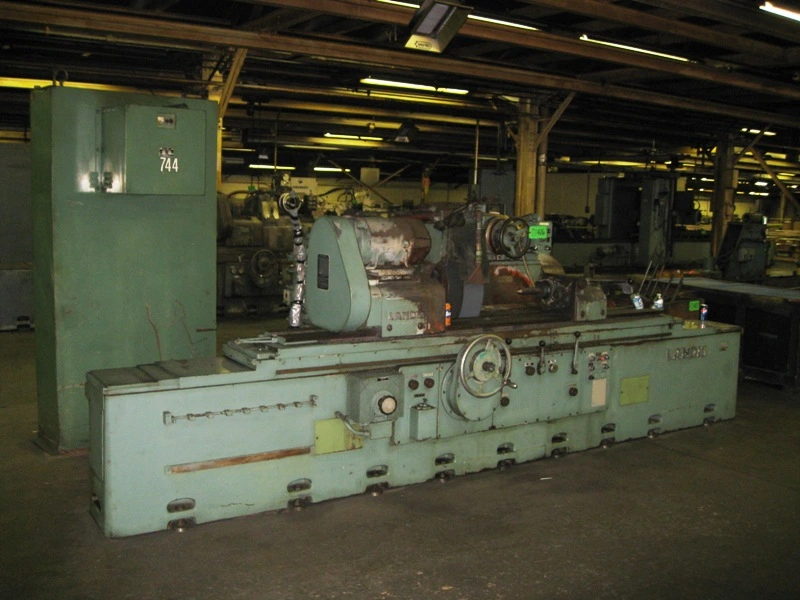

10 x 72 LANDIS 4R CYLINDRICAL GRINDER

10 x 72 LANDIS 4 R CYLINDRICAL GRINDER

S/N 819-52Year: 1966

STANDARD CATALOG SPECIFICATIONS
Nominal work swings................................ 10
Maximum work swing over table...................... 10
Nominal distances between work centers............. 72
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on straight wheel head machine with hydraulic in feed stroke as noted.................. 10-3 /12 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on straight wheelhead machine with hydraulic infeed stroke as noted ................. 10-3/12\ H.I.
Minimum diameter wheel to grind zero diameter work oncenters on straight
wheel head machines............ 20
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic stroke as noted......................... 10-4 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on angle wheel headmachine with hydraulic stroke as noted .. . . . . . . . . . . . 10\-4\H.I.
Minimum diameter wheel to grind zero diameter work on
centers on angle wheel head machines............... 21-3/4
Coolant tank capacity..............................55 gallons
Hydraulic tank capacity............................22.5 gallons

WORK CARRIAGE
Traverse speed (in/min) all
Lengths thru 72...................................2 to 240
96 Thru 120 lengths..............................2 to 144
Traverse speed per turn off
Hand wheel:
Slow...............................................0.100
Fast...............................................0.750-72
Work rest capacity.................................1/2 to 7

WHEEL HEAD AND WHEEL FEED
Grinding wheel size – standard.....................30 x 6 x 12
Grinding wheel - maximum width.....................7
Grinding wheel spindle speeds......................800/964 RPM
Grinding wheel minimum diameter worn wheel......... 20
Hydraulic rapid in feed -straight
Wheel head machine: Maximum standard............... 3 1/2
Minimum standard...............1 5/8
Hydraulic rapid in feed - Angle
Wheel head machine: Maximum standard............... 4 1/4
Minimum standard...............2 3/8

EQUIPPED WITH
Head stock variable speed.
Tail stock - screw lever type.
Micro feed.
Tarry left right.
Coolant in base.
Tail stock dresser.
15 HP Spindle motor.
Plunge.
3 1/2 Hydraulic in feed with Micro-Feed option.
#14 Jarno centers.

Specifications are deemed accurate, however, subject to verification or prior sale.
