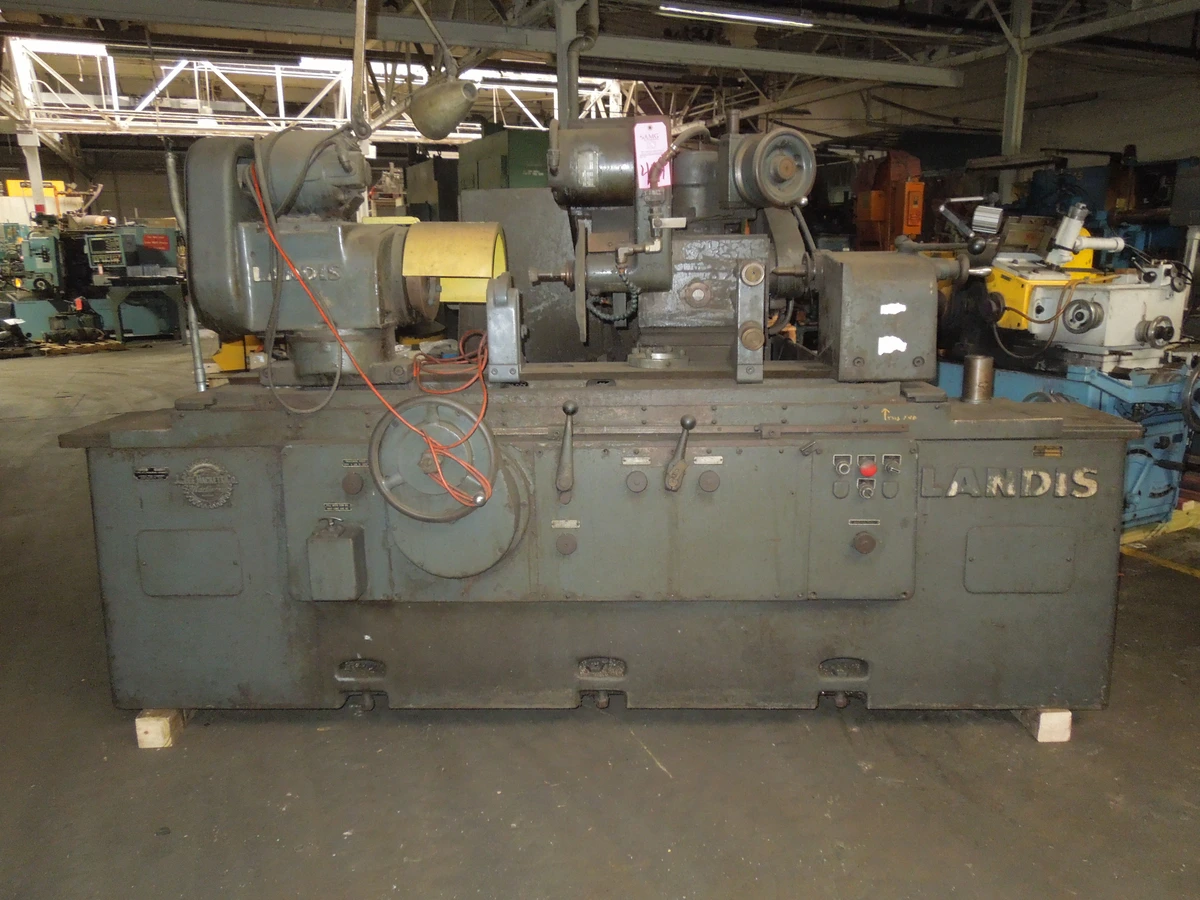

18"x36" 3R LANDIS UNIVERSAL CYLINDRICAL GRINDER

18 x 36 3R LANDIS UNIVERSAL CYLINDRICAL GRINDER
S/N 796-19Year: 1969

STANDARD CATALOG SPECIFICATIONS
Nominal work swings........................................................ 18
Nominal distances between work centers............................ 36
Maximum work swing diameter standard machine
will grind with full size standard wheel.......................... 19 1/4
Minimum diameter wheel to grind zero diameter
work on centers........................................................... 9 1/4
Coolant tank capacity, gallons............................................ 40
Hydraulic tank capacity, gallons.................................... 25 1/2
Height from floor to work centerline.............................. 45 1/4

WORK CARRIAGE
Traverse speed, inches per minute.............................. 2 to 240
Traverse per turn of hand wheel ‑slow............................. 0.100
‑fast............................. 0.750
Center rest capacity...................................................... 1 ‑ 7
Work rest capacity..................................................... 1/2 ‑ 7

WHEEL HEAD WHEEL FEED
Grinding wheel size..........................................14 x 1 1/2 x 5
Grinding wheel head swivel range‑ upper....................... 180 Deg.
-lower................... 60 Deg.CW
..................30 Deg.CCW
Grinding wheel spindle speeds, RPM.......................... 1720‑2185
Automatic infeed at table reversal on dia........... 0.0002 to 0.004
Maximum distance wheel centerline to work
centerline.............................................................18 ‑ 23 7/16
Minimum distance wheel centerline to work centerline .............3
Work diameter reduction per revolution of hand wheel .......0.100
Work diameter reduction per revolution of
fine feed knob (Hydraulic Infeed Machines)....................... 0.001
Maximum hydraulic feed ondiameter for hydraulic infeed
machines ......................................................0.090
Rapid infeed stroke for hydraulic infeed
machines ............................................... 18 ‑ 1 1/2
Internal spindle speed, rpm.......................................... 15,000

HEAD STOCK FOOT STOCK
Head stock work center.....................................#14 Jarno
Foot stock workcenter...................................... #10 Jarno
Foot stock center movementby............ Lever hand wheel
Work speeds RPM ‑ Low Range.............................12 to 72
‑ High Range.....................................60 to 360
Diameter hole through head stockspindle................ 1 7/16
Head stock swivelrange................................. 120 Degrees
Head stock spindlenose........................................... 6A‑2

ELECTRIC MOTORS
Wheel drive motor.............................................3 HP
Work drivemotor........................................... 3/4 HP
Hydraulic oil pump generator drive motor..........2 HP
Internal fixturemotor....................................... 1 HP
Coolant pump motor.................................... 1/3 HP
Internal fixture motor.......................................2 HP
Wheel spindle lubrication pumpmotor..............1/4 HP
Floor space required................................78 x 169
Weight of machine, net............................10,000 lbs.
EQUIPMENT FEATURES
Hydraulic table travel.
Tarry L R.
Swing down I.D. attachment.
Attached electrical.
Coolant in base.
Pick feed.
Manual tailstock.
