CINCINNATI 3-500 78-370281-13

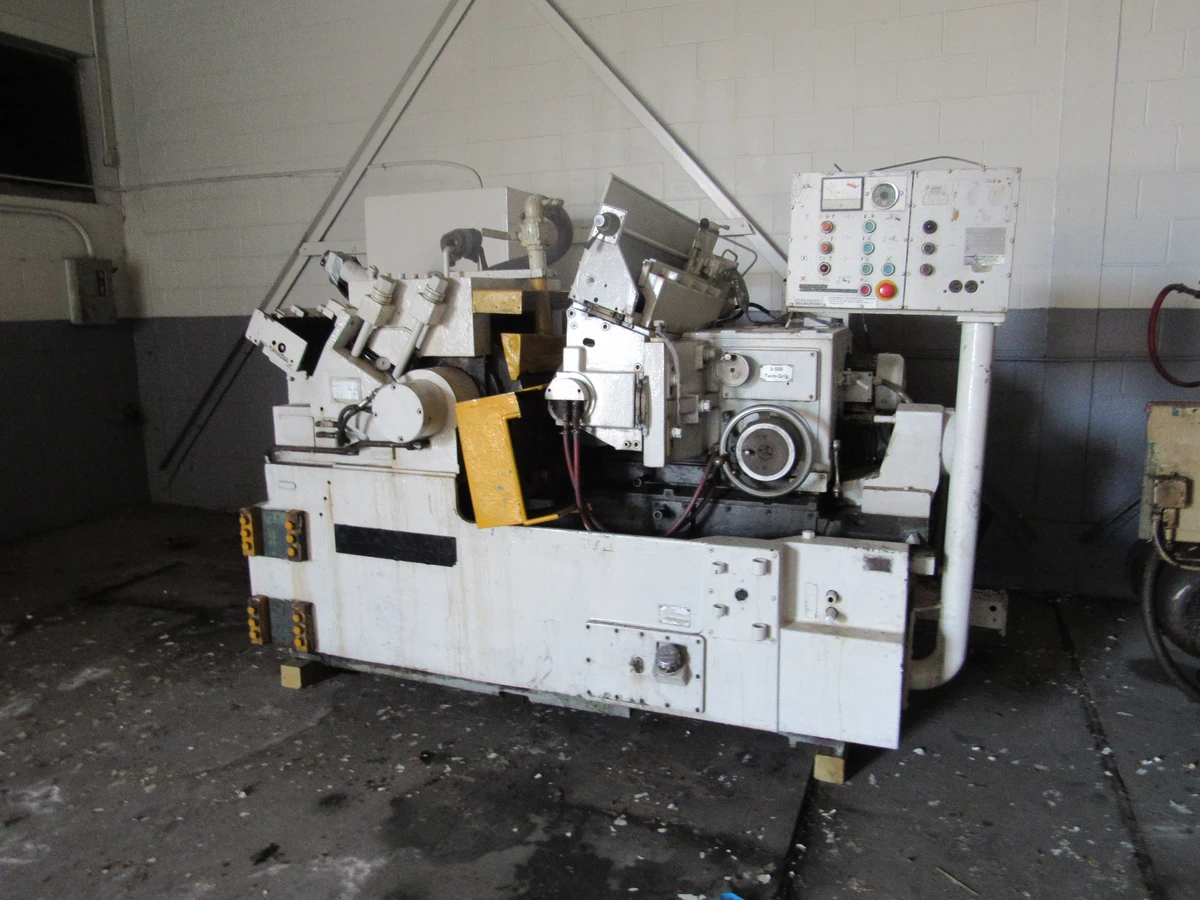

3-500 CINCINNATI TWIN GRIP CENTERLESS GRINDER

S/N 78-370281-13 Year: 1982

STANDARD SPECIFICATIONS
Grinding wheel size……………………………………… 24” x 20” x12”
Regulating wheel size……………………………………. 14” x 20” x 6”
Work O.D. range…………………………………………. 1/4 to 6
Grinding wheel drive……………………………………... 40 HP AC Motor
Grinding wheel surface speed…………………………….. 33 MPS (6500 SFPM)
Spindle lubrication pump…………………………………. 1 HP AC Motor
Regulating wheel drive……………………………………. 300 in. lb AC Motor
Machine weight……………………………………………. 22,000 lbs.

Standard Cincinnati controls.
40 HP main grinding wheel spindle motor.
Spindle speed…………………………………………….. 1034 RPM
Wheel diameter…………………………………………… 24”
Wheel width………………………………………………. 20”
Lubrication system.
Standard compensator.
Standard transmission.
STANDARD SPECIFICATIONS
Manual comp / hydraulic traverse regulating wheel truing.
Manual comp / hydraulic traverse grinding wheel truing.
Thrufeed workrest.
Attached electrical panel.
Internal hydraulics.
Jib crane.

Specifications are deemed accurate, however, subject to verification or prior sale.
