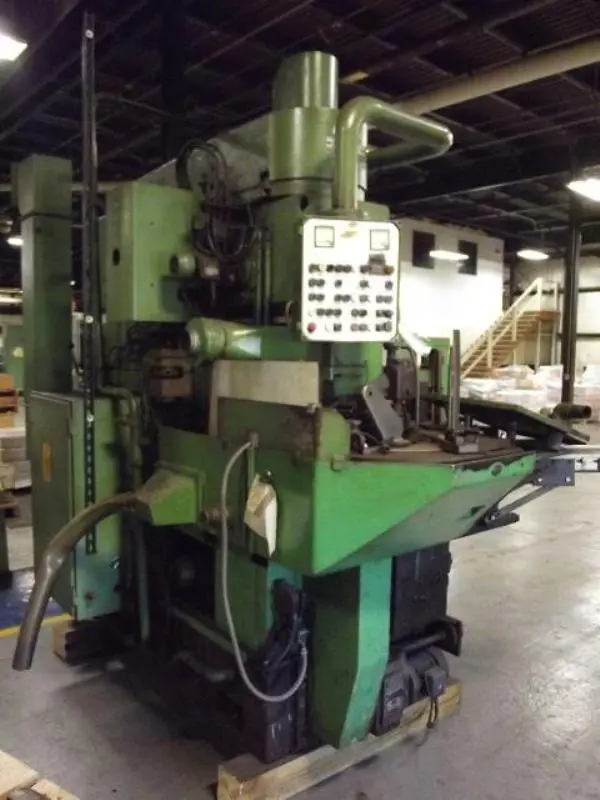

DISKUS-WERKE DDS 600 III CRA VERTICAL DISC GRINDER

DISKUS-WERKE DDS 600 III CRA VERTICAL DISC GRINDER
PRIVATE
S/N 7477Year: 1980

STANDARD CATALOG SPECIFICATIONS
Grinding wheels diameter...........23.6”.........600 mm
Grinding wheels height x width 2.9” x 5.9”.......75 x 150 mm

PRIVATE WORK PIECE DIMENSIONS:
Grinding height x grinding with....1.96” x 4.7”....50 x 120 mm
Vertical adjustment of each grinding head 5.9”.....150 mm
Hydraulic in feed impulse...........................0.001- 0.02 mm
External diameter of work piece carrier disc.......31.4” - 800 mm
Feeds of rotary work piece feed system,
infinitely variable................................23-250 mm/sec
Grinding wheels speeds infinitely variable.........765 RPM
Grinding spindle drive.............................30 HP each
Swing arm hydraulic dresser.
Tilting heads.
Weight approximate...........................17,600 lbs. - 8,000 kg
PRIVATE
Specifications are deemed accurate, however, subject to verification or prior sale.
