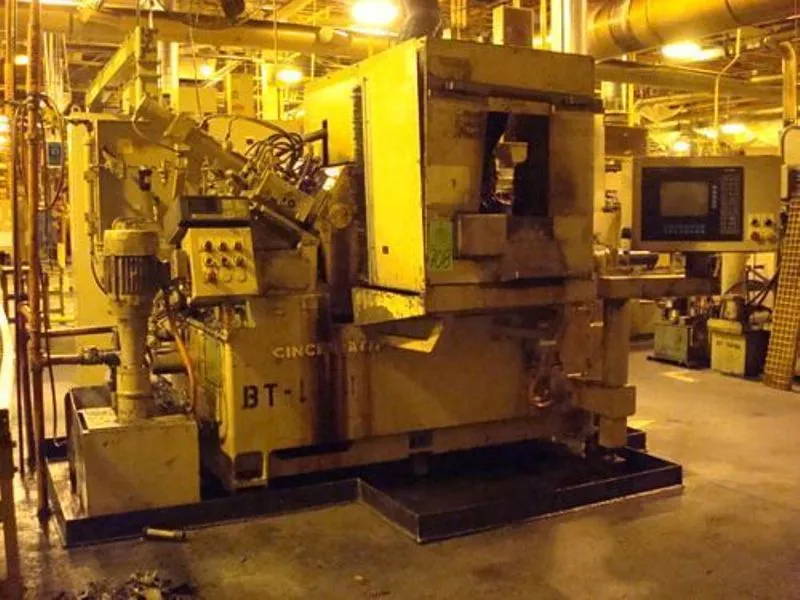

325-12 CINCINNATI CENTERLESS GRINDER

325-12 CINCINNATI CENTERLESS GRINDER

PRIVATE S/N 6M12H5LN-9Year: 1962tc�\l 1 S/N 6M12H6M-3����Year\: 1963

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Work rests or bar grinding fixtures are not
standard equipment.)
Standard thru feed in feed work rests........ 1/2 to 3 dia.
Maximum work diameter............................... 6
(Depending on which work rest is ordered)

BAR GRINDING FIXTURES
Type V - Solid bars...................... 1/16 to 1 1/2 dia.
Type V - Modified for light walled
or other similar material....... 1 1/2to 2 1/2 dia.
Type C - Lengths up to................... 24 ft.
Solid bars...................... 1/2to 2 dia.
Hollow tubes.................... 1/2to 4 dia.

WHEELS (Not included in price)
Grinding wheel.................12 Hole, 8-12 Widths
.......................................24 Max. dia., 16 Min. dia.
Regulating wheel...............6 Hole, 8-12 Widths
.......................................14 Max. dia., 10 1/4 Min. dia.

GRINDING WHEEL SPINDLE
PRIVATE High grade alloy steel, heat treated, titanium dioxide coated and ground. Filmatic bearings self-adjusting for variations in load with plain thrust bearing in center. Automatic circulating lubrication under pressure.tc�\l 1 High grade alloy steel, heat treated, titanium dioxide coatedand ground.� Filmatic bearings self-adjustingfor variations in load with plain thrust bearing in center.� Automatic circulating lubrication underpressure.

REGULATING WHEEL SPINDLE
PRIVATE High grade alloy steel, heat treated, titanium dioxide coated and ground. Two piece bronze front and rear bearings, anti-friction radial and thrust bearing on end. Automatic pressure lubrication.tc� \l 1 High grade alloy steel, heattreated, titanium dioxide coated and ground.�Two piece bronze front and rear bearings, anti-friction radial andthrust bearing on end. Automatic pressure lubrication.

REGULATING WHEEL SPEEDS
Number..............................Infinite
Range...............................60 cycle: 11 to 300 RPM
.......................................50 cycle: 12 to 315 RPM
Low range........................... 60 cycle: 11 to 56 RPM
.......................................50 cycle:12 to 59 RPM
High range.......................... 60 cycle: 56 to 300 RPM
.......................................50 cycle:59 to 315 RPM

GRINDING WHEEL DRIVE
Enclosed motor on end of machine......... 25 HP
Constant speed, NEMA dimensions.......... 50 - 60 cycle, 3 phase
208 or 575 single; 230/460 dual voltage
AC drives grinding wheel only.
Power transmission....................... 8 V-belts

REGULATING WHEEL DRIVE
Servo transmission

CUTTING FLUID EQUIPMENT
Individual motor driven cutting fluid pump capacity 30 GPM
Cutting fluid tank capacity.............. 75 gallons

WHEEL TRUING
PRIVATE Independent truing units for each wheel. Hydraulic diamond profile truing for grinding and regulating wheels. Diamond not included as standard equipment.

SIZING ADJUSTMENT
PRIVATE Accurate adjustment of regulating wheel slide by in feed hand wheel graduated in fifty millionths of an inch.tc� \l 1 Accurate adjustment of regulatingwheel slide by in feed hand wheel graduated in fifty millionths of aninch.

FLOOR SPACE WEIGHT
Floor space.............................. 95 1/4 x 140 3/8
Weight...................................15,000 lbs.

PRIVATE EQUIPMENT FEATUREStc� \l 2 EQUIPMENT FEATURES
Electric profile truing on grinding wheel.
Electric profile truing on regulating wheel.
Outboard support (regulating spindle).
Attached electrics.
Trabon lube.
Servo transmission.

Specifications are deemed accurate, however, subject to verification or prior sale.
