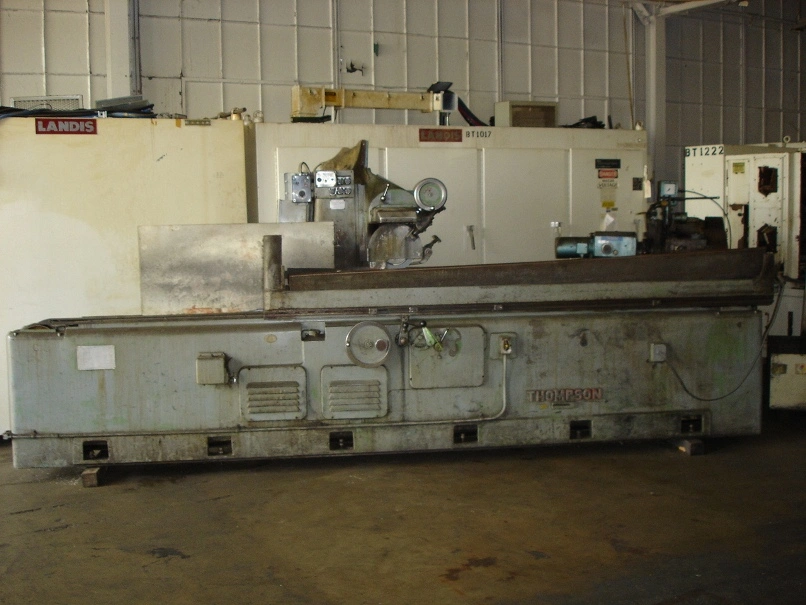

12 x 72 THOMPSON HORIZONTAL SPINDLE RECIPROCATING SURFACE GRINDER

12 x 72 THOMPSON HORIZONTAL
SPINDLE RECIPROCATING SURFACE GRINDER
MODEL B

S/N 6B-524697New: 1952

STANDARD SPECIFICATIONS
Maximum table working surface......................12 x 72
Magnetic chuck working surface.....................12 x 72
Longitudinal travel(X-Axis).......................78
Cross travel(Z-Axis)..............................12
Vertical travel(Y-Axis)...........................12
Table longitudinal feeds range(Variable)..........10- 100 FPM
Cross feeds range(Variable).......................6 - 240 IPM
Grinding spindle speed.............................1800 RPM
Grinding wheel diameter............................12
Grinding wheel width, standard..................... 2
Grinding wheel hole diameter....................... 5
Grinding wheel motor...............................5 HP
Hydraulic pump motor...............................5 HP
Electrics(Dual voltage)...........................220/440/3/60
Approximate machine dimensions.....................78 x 205
Approximate machine height.........................81
Approximate machine weight.........................12,800 lbs.

EQUIPPED WITH
12 x 72 Magnetic chuck with controls.
Auto recip. cross feeds.
Hydraulic table travel.
Auto reverse.
Manual elevation.
Speed control.
External coolant.

Specifications are deemed accurate, however, subject to verification or prior sale.
