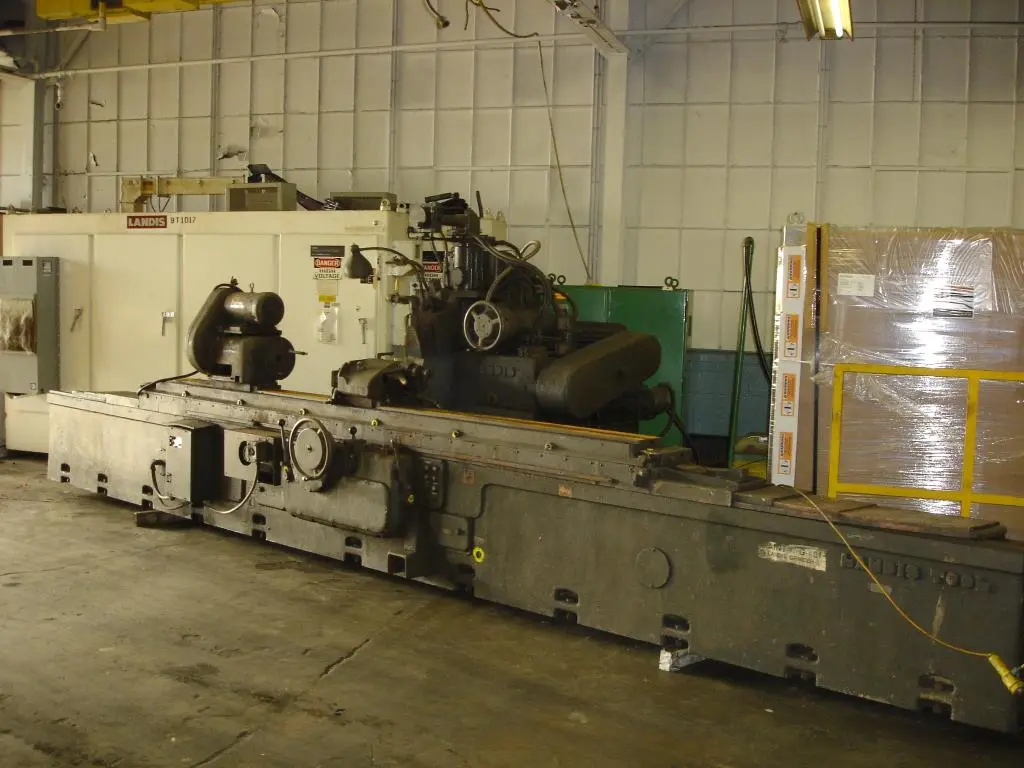

14 x 120 LANDIS TYPE CH PLAIN CYLINDRICAL GRINDER

14 x 120 LANDIS TYPE CH PLAIN CYLINDRICAL GRINDER
S/N 669-30 Year: 1958

STANDARD SPECIFICATIONS
Maximum swing………………………………………………… 14
Maximum center distance……………………………………….. 120
Table swivel……………………………………………………… 8 1/2 degrees
Work head speeds………………………………………………… Variable DC
Wheel size (dia x bore x wide)…………………………………… 30 x 20x 4

EQUIPPED WITH
Plunge grinding cycle.
Tarry – left right.
Swivel table and carriage with hydraulic traverse and two speed hand traverse.
Hand operated wheel feed.
Automatic wheel feed at points of work carriage reversal.
Dead center head stock with variable speed.
Hydraulic operated foot stock by means of foot pedal.
Riser blocks to accommodate 14 swing.
Wheel head mounted dresser with auto diamond advance.
Coolant pump and tank.

ELECTRICS
15 HP 220/440/3/60 Spindle Motor 1750 R.P.M.
3 HP 220/440/3/60 Hydraulic Motor
1 HP 220/440/3/60 Work Head Motor 1155 R.P.M.

Specifications are deemed accurate, however, subject to verification or prior sale.
