16"x32" Weldon, Behind The Wheel Electric Dresser, Tail Stock Dresser, G.E. Mark Century 1050 CNC Controls, Toshiba Transistor Inverter 130 Gz. As Is.

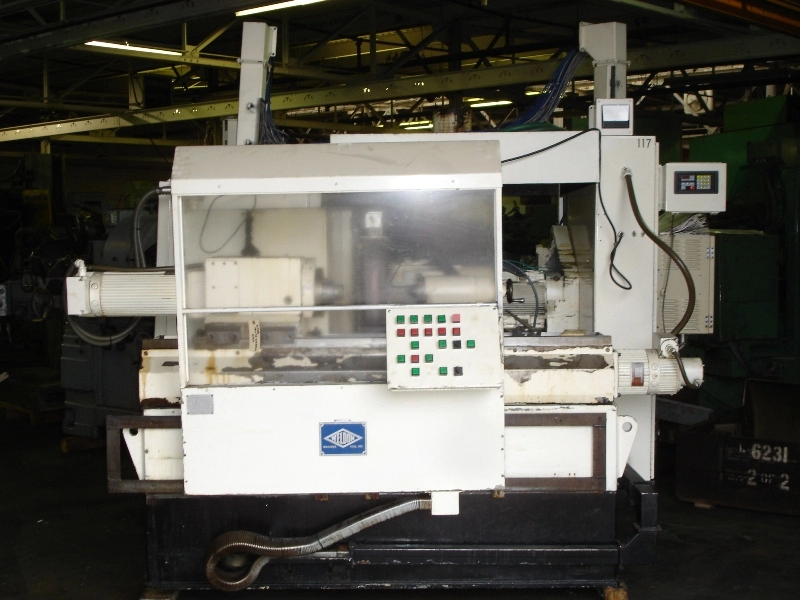

16 x 32 WELDON CNC PLAIN CYLINDRICAL GRINDER
Model 1632
S/N 653Year: 1983
STANDARD SPECIFICATIONS
Swing over table – maximum………………………………………. 16
Grinding diameter, maximum (with new 14wheel)……………….16
Grinding length, maximum (work length)………………………….. 26
Wheel slide angle…………………………………………………… 90�
Grinding wheel, maximum diameter (with new wheel)……………. 14
Grinding wheel, maximum width…………………………………... 3
Grinding wheel, hole diameter……………………………………... 5
Table rapid traverse rate……………………………………………. 100 IPM
Table feed rates……………………………………………………… .01 – 100 IPM
Wheel feed in feed rapid traverse rate………………………………. 100 IPM
Wheel feed in feed resolution……………………………………….. .0001
Wheel head horse power……………………………………………. 10 HP
Wheel head (grinding wheel) speed………………………………… 1750 RPM
Work head speed (infinite variable)………………………………… 0-600 RPM
EQUIPPED WITH
Behind the wheel electric dresser.
Tail stock dresser.
G.E. Mark Century 1050 CNC Controls.
Toshiba Transistor Inverter 130 Gz.
DC Variable drive work head motor.
Servo in feed.
Specifications are deemed accurate, however, subject to verification or prior sale.
