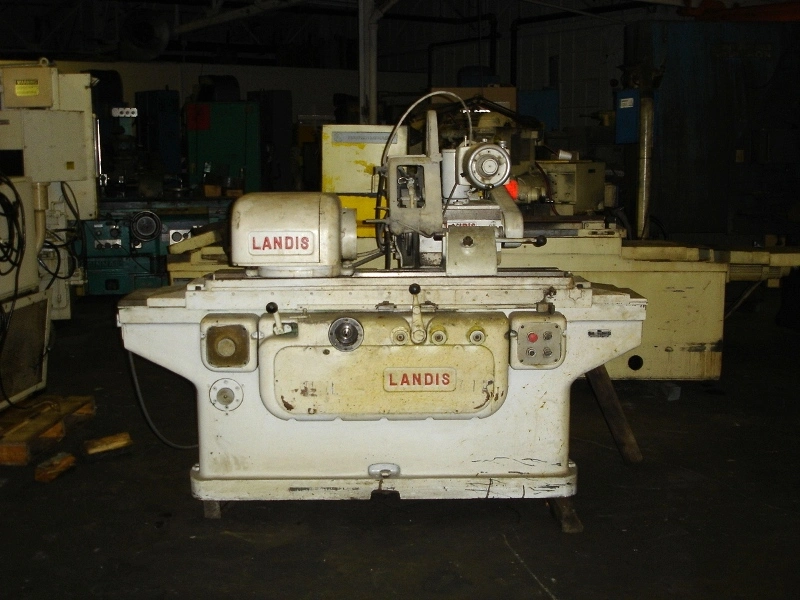

10 x 24 LANDIS CH UNIVERSAL CYLINDRICAL GRINDER

10 x 24 LANDIS CH UNIVERSAL CYLINDRICAL GRINDER

S/N 650-20Year: 1961

STANDARD CATALOG SPECIFICATIONS
Nominal work swings............................. 10
Nominal distances between work centers.......... 24
Maximum work swing diameter standard machine will grind with full size standard wheel....................... 10 31/32
Minimum diameter wheel to grind zero diameter work on centers........................................ 9 Degrees
Coolant tank capacity,gallons.................. 28
Hydraulic tank capacity,gallons................ 25 1/2
Height from floor to work center line............ 42

WORKCARRIAGE
Traverse speed, inches per minute............... 2 to 240
Traverse per turn of hand wheel-slow.......... 0.100
-fast.......... 1.000
Center rest capacity............................ 1/4 - 2
Work rest capacity.............................. 1/4 - 4

WHEEL HEAD WHEEL FEED
Grinding wheel size.............................10x 1 x 5
Grinding wheel head swivel range-upper........ 180 Deg.
-lower........ 60 Deg. CW
30 Deg. CCW
Grinding wheel spindle speeds,RPM.............. 2005-2533
Automatic in feed at table reversal on dia...... 0.0002 to 0.004
Maximum distance wheel center line to work
center line.........................................10- 15 1/2
Minimum distance wheel Center line to work
center line.........................................11/2
Work diameter reduction per revolution of
hand wheel.........................................0.100
Work diameter reduction per revolution of fine feed knob(Hydraulic In feed Machines)....................... 0.001
Maximum hydraulic feed on diameter for hydraulic infeed machines.......................................... 0.090
Rapid in feed stroke for hydraulic in feed
machines..........................................1 1/2
Internal spindle speed,RPM........................ 18,000

HEAD STOCK FOOTSTOCK
Head stock work center............................. #10 Jarno
Foot stock work center............................. # 6 Jarno
Foot stock center movement by...................... Lever only
Work speedsRPM-LowRange........................30 to 150
-HighRange.......................120 to 600
Diameter hole through head stock spindle........... 1
Head stock swivel range............................ 120 Degrees
Head stock spindle nose............................ 5A-2

Lengths between centers - 24
Swivel table graduated, inches pe rfoot............ 4 1/2
Swivel table graduated, degrees included angle..... 20 Degrees

ELECTRIC MOTORS
Wheel drive motor.................................. 1.5 HP
Work drive motor................................... 1/3 HP
Hydraulic oil pump generator drive motor......... 1/4 HP
Internal fixture motor............................. 1 HP
Wheel spindle lubrication pump motor............... 1/4 HP

EQUIPMENT FEATURES
Swing down internal grinding attachment.
Variable speed head stock.
Manual tail stock with diamond post.
