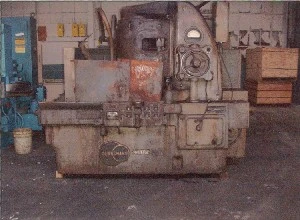

18-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

18-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

S/N 6274 Year:1950

STANDARD CATALOG SPECIFICATIONS

RANGE
36 diameter x 12 high over 36 chuck with new cylinder wheel - 11 high with Blanchard segment wheel.

WORKTABLE
PRIVATE Blanchard one-piece steel magnetic chuck, 36diameter with 5/8 pole spacing.Chuck has 2 center hole and nineteen 3/8 tapped holes in 36chuck. Maximum weight of work load 3,000 lbs.tc�\l 1 Blanchard one-piece steel magnetic chuck, 36\ diameterwith 5/8\ pole spacing.� Chuck has2\ center hole and nineteen 3/8\ tapped holes in 36\chuck.� Maximum weight of work load 3,000lbs.

WHEEL
18 x 5 x 15 cylinder or 18 x 5x 14 sectored (both wire banded) or 18 Blanchard segment wheel. Wheel head for 20 wheel can be furnished on special order (recommended for grinding to center of work over 32 diameter). Segmented quoted optional.

SPEEDS
Wheel: 720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck: 6, 9, 12, 18, 25, 33 R.P.M.
(On 50 cycles chuck speeds are 5/6 of these.)

FEED
Vertical down feed of wheel by hand or power.
PRIVATE Power feed: On 60 cycles approximately .004 to .080, and on 50 cycles approximately .003 to .066 per minute with accuratetc� \l 1 Power feed\:� On 60 cycles approximately .004\ to.080\, and on 50 cycles approximately .003\ to .066\ perminute with accurate
automatic stop. Maximum distance of down feed before stop operates is one turn of dial, .100. Wheel head has rapid power
rising and lowering, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base, capacity 150 gallons.
Motor driven centrifugal pump submerged in tank, 1 1/2discharge pipe, 60 gallons per minute, supplying water inside the wheel and to outside nozzle through 1 pipes.

CURRENT FOR MAGNETIC CHUCK
36 diameter: 110 volts, D.C. 7.2 amps, 792 watts
220 volts, D.C. 3.5 amps, 792 watts

FLOOR SPACE HEIGHT
Length 9'3, width 4'11including control cabinet.
Maximum height 7'7,minimum 6'9.
Height of chuck from floor 35.

WEIGHT
11,800 lbs.

EQUIPMENT FEATURES
36 Blanchard one piece steel magnetic chuck.
25 H.P. 220/440 3 60 cycle head motor.
Water guards.
Wheel dresser.
Coolant in base.
4 Piece segmented wheel chuck.

Grinders Clearing House is the largest stocking dealer of
Blanchard grinders. We have a large assortment of models to
choose from, all in various states.Rebuilt, recondition, or
cleaned, painted and fully operational.All our Blanchard’s come
with a full warranty. G.C.H. is an after market Blanchard parts
supplier as well. Please don’t hesitate to ask your salesperson
about more details.

Specifications are deemed accurate, however, subject to verification or prior sale.
