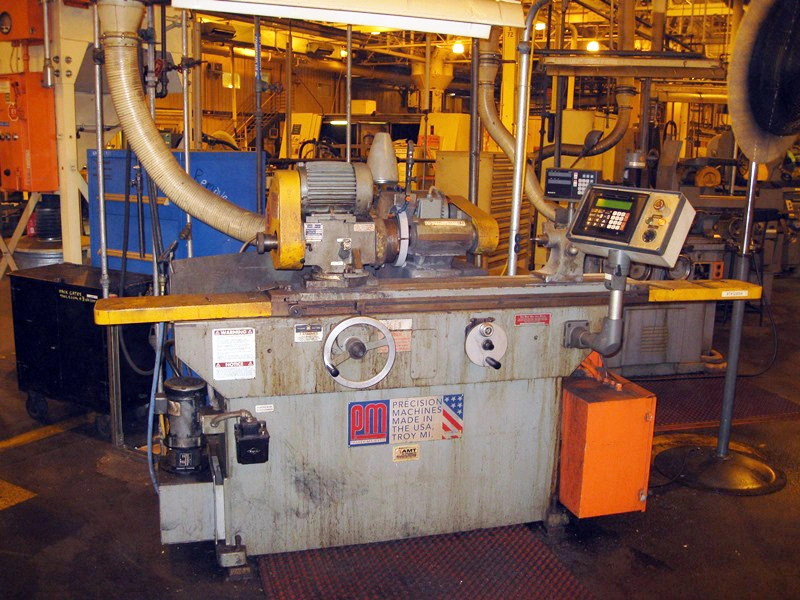

12 x 30 PARKER MAJESTIC PLAIN CYLINDRICAL GRINDER

12 x 30 PARKER MAJESTIC PLAIN CYLINDRICAL GRINDER
S/N6058-2EA-95 Year: 1995

STANDARD SPECIFICATIONS
Table width x length……………………………….. 5” x 50”
Distance between centers………………………….. 30”
Table swivel……………………………………….. 7
Swing over table……………………………………12”
Table speeds (under power)……………………….. 3” to 30”per minute
Head stock swivel…………………………………. 90
Head stock speed…………………………………... 2-450 RPM
Dead center speeds………………………………… 2-225 RPM
Hole through head stock shaft………...…………… 1 1/4
Head stock center taper……………………………. #6 Jarno
Tail stock center taper……………………………... #6 Jarno
Cross feed travel…………………………………… 7”
Cross feed adjustment……………………………… 4”
External grinding wheel……………………………. 12” x 1” x 5”
Table feed motor…………………………………… 3/4 HP @1,750/400 RPM
Work head motor…………………………………… 1 HP @ 1,750/400 RPM
Spindle drive motor (external)……………………… 5 HP @1,800 RPM /variable speed
Floor height…………………………………………. 46”
Floor area……………………………………………. 41” x 124”
Approximate weight………………………………… 4,200 lbs.

Machine Features
Parker push button control station.
Sony DRO on table traverse.
Variable speed work head.
Servo in feed and table traverse.
Tail stock dresser.
Coolant in base.
Bijur auto lube system.
Attached electrical.

Specifications are deemed accurate, however, subject to verification or prior sale.
